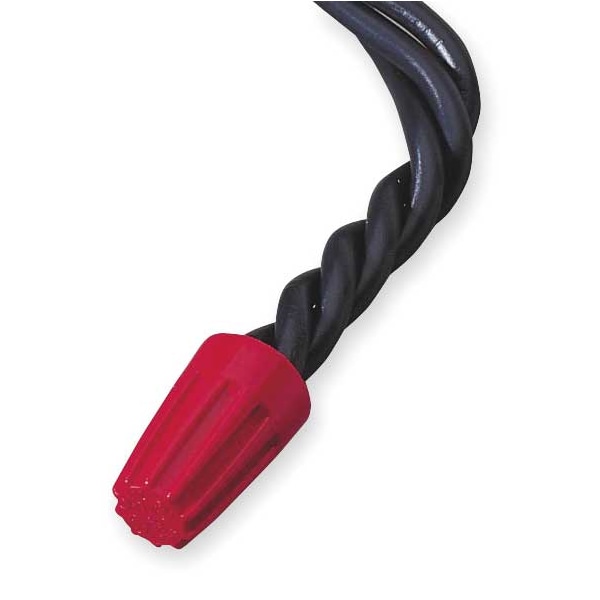

Conector de cable de torsión, calibre 18-10, paquete de 150.
| Color | Red |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | 76B |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (2) 14 AWG |
| Max. Wire Combination | (2) 10 AWG with (2) 12 AWG |
| Height | 1.06 in |
| Width | 0.66 in |
| Application | General Purpose |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Max. Temp. | 221 deg F |
| Connector Type | 76B |
| Maximum Conductors | 6 |
| Minimum Wire Combination | (2) 14 AWG |
| Strip Length | 1/2 in |
| Overall Height | 1.06 in |
| Maximum Operating Temperature | 221 deg F |
| Overall Width | 0.59 in |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Contact Material | Steel |
| Minimum Single Wire Size | 18 AWG |
| For Conductor Material | Copper |
| Special Features | Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications |
| Insulation Material | Polyester |
| Maximum Wire Combination | (4) 12 AWG |
| Maximum Single Wire Size | 6 AWG |
| RoHS Compliant | Yes |
| Minimum Wire Gauge | 18 AWG |
| Maximum Wire Gauge | 6 AWG |
| Maximum Rated Voltage | 600V |
| Termination Method | Twist-On |
| Twist-On Style | Non-Wing |
| Package Quantity | 150 |
