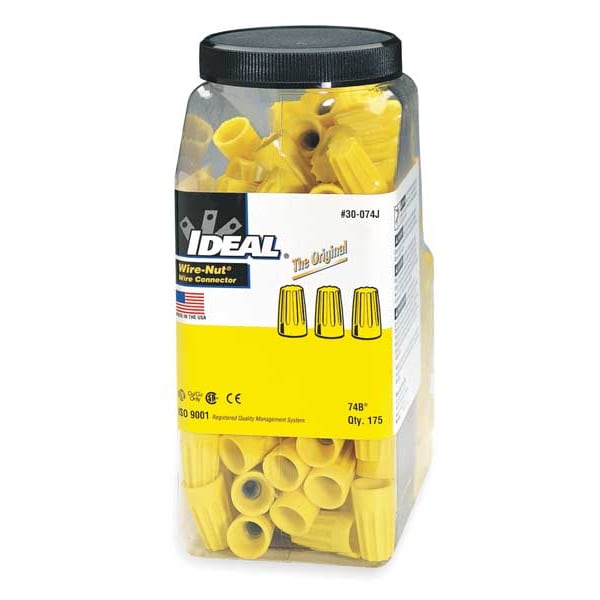

Twist On Wire Connector, 18-12 AWG, PK175
| Color | Yellow |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 12 AWG |
| Series | 74B |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (4) 14 AWG with (1) 18 AWG |
| Height | 0.95 in |
| Width | 0.55 in |
| Application | General Purpose |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Connector Type | 74B |
| Max. Temp. | 221 deg F |
| Contact Material | Steel |
| UL 94 Flammability Rating | V-2 |
| Strip Length | 7/16 in |
| Minimum Single Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Special Features | Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications |
| Overall Width | 0.55 in |
| Minimum Wire Combination | (2) 18 AWG |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| Insulation Material | Polyester |
| For Conductor Material | Copper |
| Maximum Single Wire Size | 12 AWG |
| Maximum Wire Combination | (4) 14 AWG with (1) 18 AWG |
| Maximum Conductors | 6 |
| Overall Height | 0.95 in |
| Product Type | Cable Tying |
| Product Color | Yellow |
| Product Name | 30-074J Cable Binder |
| Cable Manager Type | Cable Holder |
| Termination Method | Twist-On |
| Twist-On Style | Non-Wing |
| Maximum Wire Gauge | 12 AWG |
| Maximum Rated Voltage | 600V |
| Minimum Wire Gauge | 18 AWG |
| Package Quantity | 175 |
