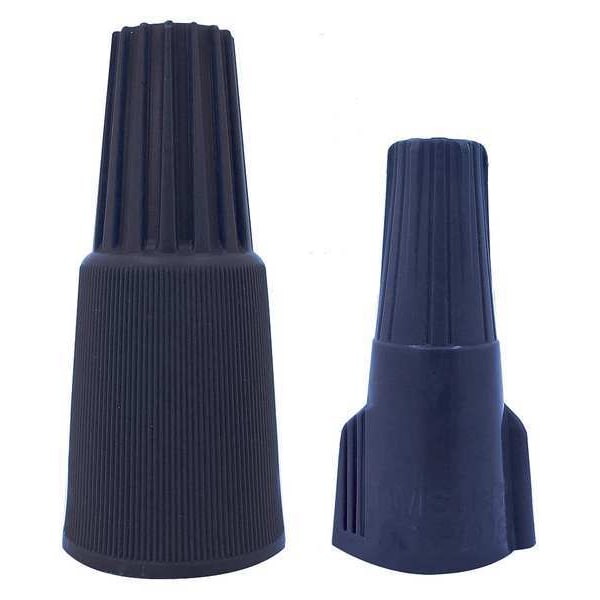

Conector de cables retorcidos, 20-10 AWG, paquete de 10.
| Color | Blue/Gray |
|---|---|
| Min. Single Wire Size | 20 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | 60/64 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (1) 20 AWG with (1) to (2) 18 AWG |
| Max. Wire Combination | (1) 10 AWG with (2) 12 AWG to (3) 10 AWG |
| Height | 1.69 in |
| Width | 0.64 in |
| Application | Underground |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Connector Type | 60/64 |
| Max. Temp. | 221 deg F |
| Minimum Wire Combination | (1) 20 AWG with (1) 18 AWG |
| For Conductor Material | Copper |
| RoHS Compliant | Yes |
| Maximum Single Wire Size | 8 AWG |
| Maximum Wire Combination | (3) 10 AWG |
| Contact Material | Steel |
| UL 94 Flammability Rating | V-2 |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | PBT |
| Minimum Single Wire Size | 20 AWG |
| Maximum Rated Voltage | 600V |
| Twist-On Style | Asst |
| Minimum Wire Gauge | 20 AWG |
| Maximum Wire Gauge | 8 AWG |
| Termination Method | Twist-On |
| Package Quantity | 10 |
