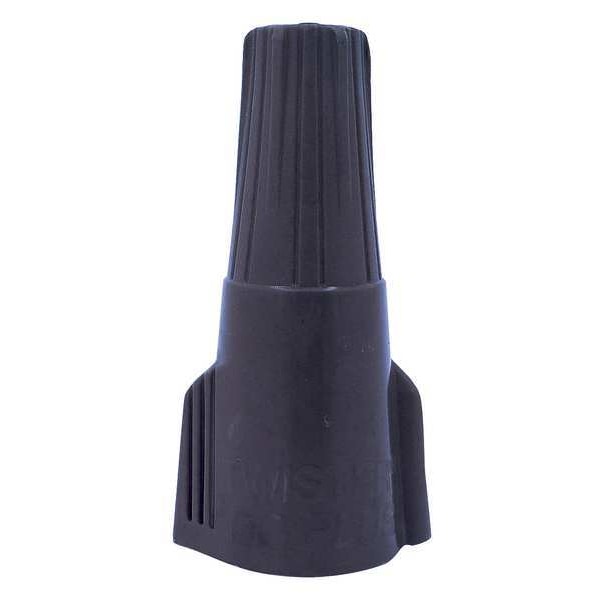

Conector de cable de torsión, 20-10 AWG, paquete de 25
| Color | Gray |
|---|---|
| Min. Single Wire Size | 20 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | 60 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (1) 20 AWG with (1) 18 AWG |
| Max. Wire Combination | (1) 10 AWG with (2) 12 AWG |
| Height | 1.69 in |
| Width | 0.64 in |
| Application | Underground |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Connector Type | 60 |
| Maximum Wire Combination | (1) 10 AWG with (2) 12 AWG |
| Outside Diameter | 0.65 in |
| Overall Width | 0.64 in |
| Insulation Material | Polyester |
| UL 94 Flammability Rating | V-2 |
| Special Features | Deep Skirt Provides Superior Moisture Resistance to Protect Connections, Expanding, Live-Action Square-Wire Spring for Fast, Secure and Long-Lasting Connections |
| Strip Length | 1/2 in |
| Maximum Conductors | 4 |
| RoHS Compliant | Yes |
| Fill Material | Silicone |
| For Conductor Material | Copper |
| Minimum Single Wire Size | 20 AWG |
| Minimum Wire Combination | (1) 20 AWG with (1) 18 AWG |
| Compatible with Product Type | Underground |
| Maximum Single Wire Size | 10 AWG |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Overall Height | 1.69 in |
| Contact Material | Steel |
| Termination Method | Twist-On |
| Minimum Wire Gauge | 20 AWG |
| Maximum Rated Voltage | 600V |
| Maximum Wire Gauge | 10 AWG |
| Twist-On Style | Non-Wing |
| Package Quantity | 25 |
