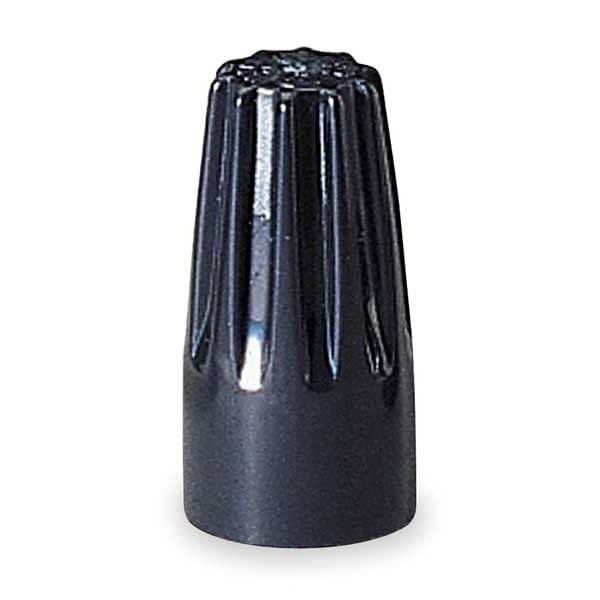

Conector de alambre giratorio, calibre 22-14, paquete de 100.
| Color | Black |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 14 AWG |
| Series | 73B |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Max. Wire Combination | (4) 16 AWG with (1) 20 AWG |
| Height | 0.86 in |
| Width | 0.44 in |
| Application | High Temperature |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 302 deg F |
| Connector Type | 73B |
| UL 94 Flammability Rating | V-2 |
| Maximum Operating Temperature | 302 deg F |
| Maximum Voltage | 600 V |
| Maximum Conductors | 5 |
| Special Features | Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers |
| Minimum Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Contact Material | Steel |
| Maximum Wire Combination | (2) 14 AWG |
| Overall Height | 0.86 in |
| Compatible with Product Type | High Temperature |
| Insulation Material | PBT |
| For Conductor Material | Copper |
| Minimum Single Wire Size | 22 AWG |
| Maximum Single Wire Size | 14 AWG |
| Overall Width | 0.44 in |
| Twist-On Style | Non-Wing |
| Termination Method | Twist-On |
| Maximum Rated Voltage | 600V |
| Maximum Wire Gauge | 14 AWG |
| Minimum Wire Gauge | 22 AWG |
| Package Quantity | 100 |
