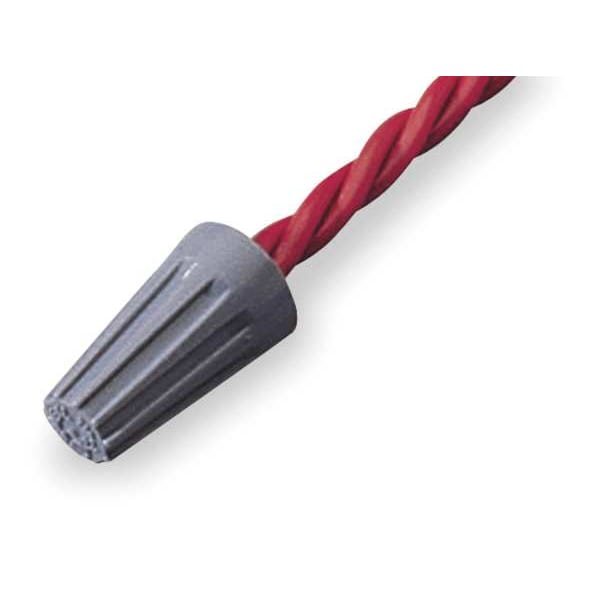

Twist On Wire Connector, 22-16 AWG, PK100
| Color | Gray |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 16 AWG |
| Series | 71B |
| Max. Voltage | 300 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (2) 22 AWG Stranded |
| Max. Wire Combination | (2) 16 AWG |
| Height | 0.58 in |
| Width | 0.33 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Connector Type | 71B |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 300 V |
| Overall Width | 0.33 in |
| Insulation Material | Thermoplastic |
| For Conductor Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Steel |
| Minimum Wire Combination | (2) 22 AWG |
| Maximum Wire Combination | (2) 16 AWG |
| Maximum Single Wire Size | 16 AWG |
| Overall Height | 0.58 in |
| Special Features | Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers |
| UL 94 Flammability Rating | V-2 |
| Maximum Conductors | 5 |
| Minimum Single Wire Size | 22 AWG |
| Promotional Badge | Best Seller |
| Product Color | Gray |
| Cable Manager Type | Protector |
| Product Type | Cable Protection |
| Additional Information | Flame-retardant shell, Reusable |
| Product Name | Cable Protector |
| Certifications & Standards | UL, CSA |
| Termination Method | Twist-On |
| Maximum Rated Voltage | 300V |
| Twist-On Style | Non-Wing |
| Maximum Wire Gauge | 16 AWG |
| Minimum Wire Gauge | 22 AWG |
| Package Quantity | 100 |
