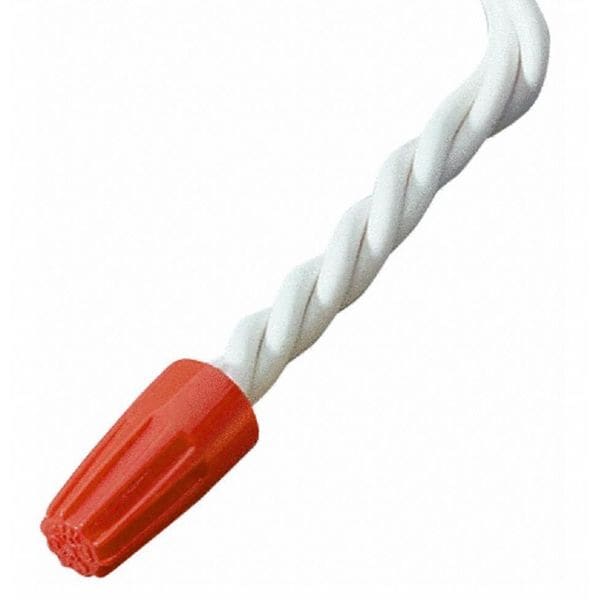

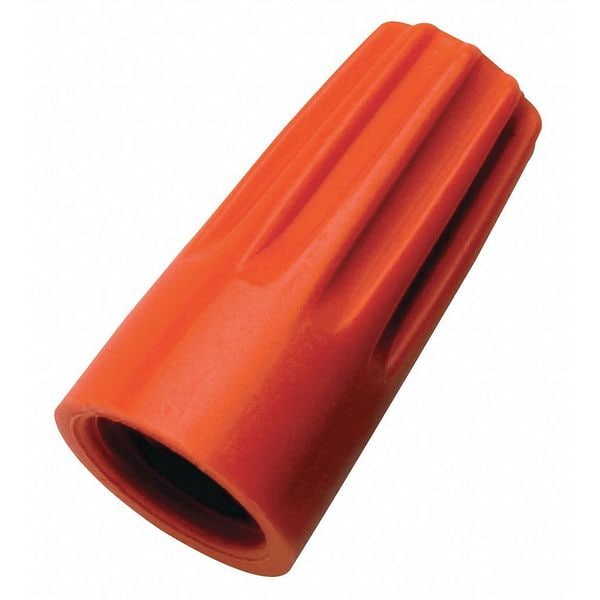

Twist On Wire Connector, 22 AWG to 14 AWG, 600 V, Standard Style, Orange, 100 PK
| Color | Orange |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 14 AWG |
| Series | 73B |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Max. Wire Combination | (2) 14 AWG |
| Height | 0.86 in |
| Width | 0.44 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Connector Type | 73B |
| Maximum Wire Combination | (2) 14 AWG |
| Special Features | Approved for Bonding and Grounding Applications, Excellent for Fine Stranded Wire Applications, Rated for Use in Air Handling Spaces, Refined Range to Handle All Common Applications, Tough, Flame-Retardant |
| Strip Length | 3/8 in |
| Minimum Single Wire Size | 22 AWG |
| For Conductor Material | Copper |
| Overall Width | 0.44 in |
| Minimum Wire Combination | (1) 18 AWG with (1) 20 AWG |
| Maximum Operating Temperature | 221 deg F |
| UL 94 Flammability Rating | V-2 |
| Overall Height | 0.86 in |
| Insulation Material | Polypropylene |
| Maximum Conductors | 4 |
| Maximum Single Wire Size | 14 AWG |
| RoHS Compliant | Yes |
| Contact Material | Steel |
| Maximum Voltage | 600 V |
| Promotional Badge | Best Seller |
| Additional Information | Flame-retardant shell, Reusable, Rated for 600 Volt maximum |
| Product Color | Orange |
| Product Type | Cable Protection |
| Cable Manager Type | Protector |
| Certifications & Standards | UL, CSA |
| Product Name | Cable Protector |
| Maximum Rated Voltage | 600V |
| Maximum Wire Gauge | 14 AWG |
| Minimum Wire Gauge | 22 AWG |
| Twist-On Style | Non-Wing |
| Termination Method | Twist-On |
| Package Quantity | 100 |
