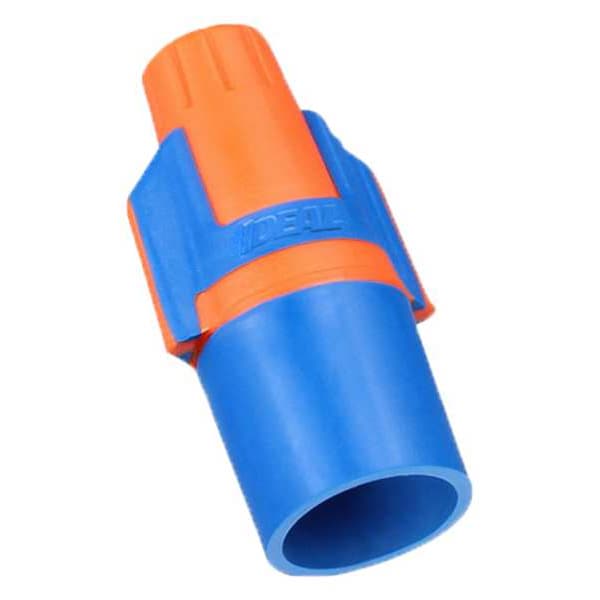

Twist On Wire Connector, 600 V, PK100
| Color | Blue/Orange |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 12 AWG |
| Max. Voltage | 600 V |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 22 AWG |
| Max. Wire Combination | (4) 12 AWG Solid |
| Height | 1.05 in |
| Width | 0.56 in |
| Application | Wide Range |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Max. Temp. | 221 deg F |
| Insulation Material | Polypropylene |
| For Conductor Material | Copper |
| Maximum Single Wire Size | 12 AWG |
| Contact Material | Steel |
| Minimum Wire Combination | (2) 22 AWG |
| Maximum Wire Combination | (4) 12 AWG |
| Overall Height | 1.05 in |
| Minimum Single Wire Size | 22 AWG |
| Overall Width | 0.56 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Twist-On Style | Wing |
| Cable Tie Length | 24.5" |
| Package Quantity | 100 |
