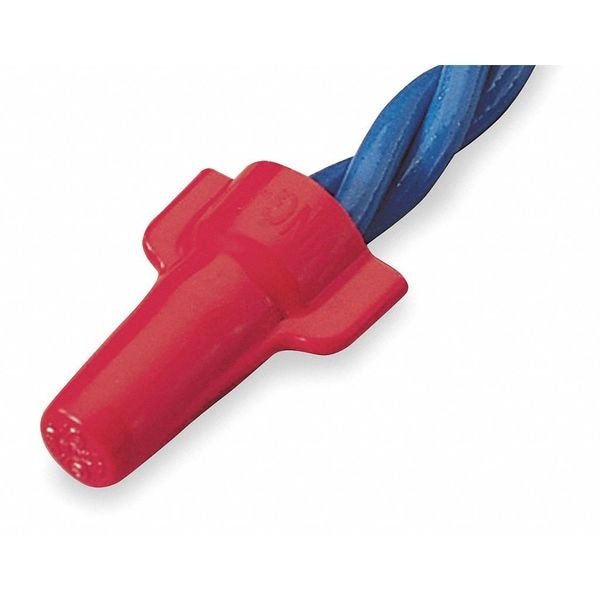

Twist On Wire Connector, 600 V, PK100
| Color | Red |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 8 AWG |
| Series | 452 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 18 AWG |
| Max. Wire Combination | (4) 10 AWG |
| Height | 1.23 in |
| Width | 0.94 in |
| Application | General Purpose |
| Connector Type | 452 |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Outside Diameter | 0.6 in |
| Minimum Wire Combination | (2) 18 AWG |
| UL 94 Flammability Rating | V-2 |
| RoHS Compliant | Yes |
| Overall Height | 1.21 in |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Steel |
| Maximum Voltage | 600 V |
| Minimum Single Wire Size | 18 AWG |
| Insulation Material | Polyester |
| Maximum Wire Combination | (4) 10 AWG |
| Maximum Single Wire Size | 8 AWG |
| Strip Length | 1/2 in |
| For Conductor Material | Copper |
| Maximum Conductors | 6 |
| Overall Width | 0.92 in |
| Special Features | Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations |
| Maximum Wire Gauge | 8 AWG |
| Maximum Rated Voltage | 600V |
| Minimum Wire Gauge | 18 AWG |
| Termination Method | Twist-On |
| Twist-On Style | Wing |
| Package Quantity | 100 |
