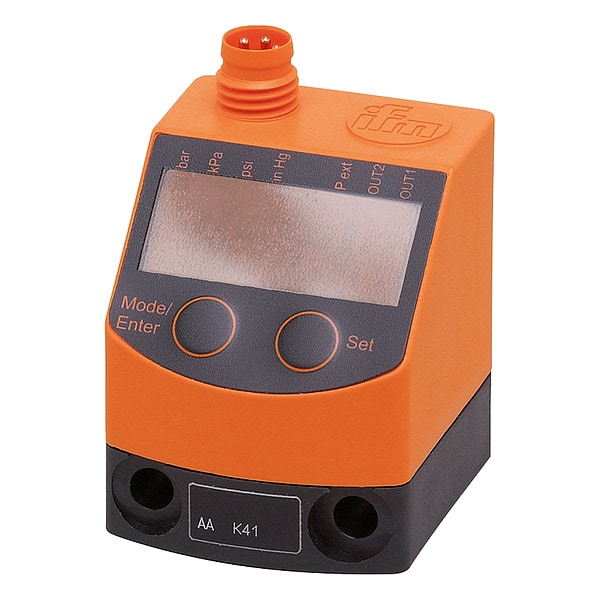

Interruptor de presión digital compuesto, (2) SPST, de -14.5 psi a vacío a 145 psi.
| Item | Compound Digital Pressure Switch |
|---|---|
| Pressure Switch Range | -14.5 psi Vac to 145 psi |
| Pressure Switch Electrical Contact Form | (2) SPST |
| IP Rating | 65 |
| Temp. Range | 13 Degrees to 176 Degrees F |
| Burst Pressure | 435 psi |
| Circuit Type | NPN |
| On Set Point | -13 to 145 psi |
| Electrical Connection | 4 Pin M8 Connector |
| Housing Material | PBT, Polyester |
| Off Set Point | -14 to 144 psi |
| Wetted Materials | Brass |
| Contact Form | (2) SPST |
| Compatible With | Air |
| Power Required | 18 to 32V DC |
| Range | -14.5 psi Vac to 145 psi |
| Output Current | 100 mA |
| Process Connection | G1/8 |
| Series | PQ |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Compressed Air |
| Overall Width | 1.18 in |
| Set Point - Minimum | -13.05 psi |
| Manufacturer Warranty Length | 5 yr |
| Set Point - Maximum | 145.04 psi |
| Pressure Connection Type | G1/8 BSP |
| Reset Point - Maximum | 144.31 psi |
| Voltage Rating - Maximum | 32 V DC |
| Reset Point - Minimum | -13.78 psi |
| Output Current Rating | 0.1 A |
| Overall Height | 1.65 in |
| Overall Depth | 1.26 in |
| Operating Temperature - Minimum | 32 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Pressure - Minimum | -14.5 psi |
| Electrical Design Output | NPN |
| Pressure - Maximum | 145 psi |
| Package Quantity | 1 |
