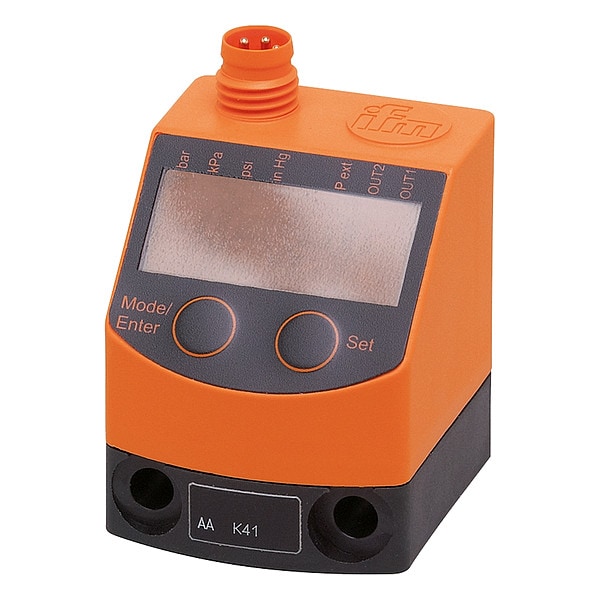

Interruptor Digital de Presión Compuesta, (2) SPST, -14.5 psi Vac a 145 psi
| Item | Compound Digital Pressure Switch |
|---|---|
| Pressure Switch Range | -14.5 psi Vac to 145 psi |
| Pressure Switch Electrical Contact Form | (2) SPST |
| Circuit Type | PNP |
| Electrical Connection | 4 Pin M8 Connector |
| Temp. Range | 13 Degrees to 176 Degrees F |
| Power Required | 18 to 32V DC |
| Range | -14.5 psi Vac to 145 psi |
| IP Rating | 65 |
| Burst Pressure | 435 psi |
| Output Current | 100 mA |
| Contact Form | (2) SPST |
| Housing Material | PBT, Polyester |
| Compatible With | Air |
| Off Set Point | -14 to 144 psi |
| Process Connection | G1/8 |
| Wetted Materials | Brass |
| On Set Point | -13 to 145 psi |
| Series | PQ |
| Application | for industrial applications |
| Display | Display unit 4 x LED, green switching status 2 x LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit |
| Product Type | Digital Pressure Sensor |
| Output function | normally open / normally closed; |
| Reverse polarity protection | yes |
| Max. voltage drop switching output DC [V] | 2 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Characteristics deviation [% of the span] | <± 0,25 (BFSL) / <± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Measuring range | -1...10 bar -15...145 psi -30...296 inHg -100...1000 kPa |
| Permanent current rating of switching output DC [mA] | 100 |
| Long-term stability [% of the span] | <± 0,05; (per 6 months) |
| Switching frequency DC [Hz] | < 200 |
| Connection | Connector: 1 x M8; coding: A; Contacts: gold-plated |
| Vacuum resistance [mbar] | -1000 |
| Current consumption [mA] | < 50 |
| Special feature | Gold-plated contacts |
| Short-circuit protection | yes |
| Medium temperature [°C] | 0...60 |
| Materials | FKM, PBT, polyester |
| Accessories (optional) | mounting set for DIN rail: TH 35-7,5 / EN60715, E37340 Thread extension: 1/8", E30075 push-in air fitting for tube: Ø 6 mm, E30076 push-in air fitting for tube: Ø 8 mm, E30077 |
| Integrated watchdog | yes |
| Media | compressed air |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Display unit | bar; kPa; psi; inHg |
| MTTF [years] | 455 |
| Temperature coefficient span [% of the span / 10 K] | 0,2; |
| Delay time programmable dS, dr [s] | 0; 0,002...5 |
| Min. pressure cycles | 50 million |
| Power-on delay time [s] | 0.3 |
| Number of digital outputs | 2 |
| Pressure rating | 20 bar 290 psi 591 inHg 2000 kPa |
| Ambient temperature [°C] | 0...70 |
| Materials (wetted parts) | FKM, PBT, brass, silicon |
| Min. bursting pressure | 30 bar 435 psi 886 inHg 3000 kPa |
| Protection | IP 65 |
| Storage temperature [°C] | -25...85 |
| Temperature coefficient zero point [% of the span / 10 K] | 0,2; |
| Response time [ms] | < 2.5 |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V |
| Protection class | III |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| Operating voltage [V] | 18...32 DC; |
| Output signal | switching signal |
| Repeatability [% of the span] | <± 0,1; (with temperature fluctuations < 10 K) |
| Type of pressure | relative pressure; vacuum |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| Overvoltage protection | yes; (< 40 V) |
| Parameter setting options | hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit |
| Total number of outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Electrical design | PNP |
| Type of short-circuit protection | pulsed |
| Reset point rP | -0.95...9.95 bar -14...144 psi -28...294 inHg -95...995 kPa |
| Switch point accuracy [% of the span] | <± 0,5 |
| In steps of | 0.05 bar 1 psi 2 inHg 5 kPa |
| Set point SP | -0.9...10 bar -13...145 psi -26...296 inHg -90...1000 kPa |
| Hysteresis deviation [% of the span] | <± 0,25 |
| Reset Point - Maximum | 144 psi |
| Pressure - Minimum | -15 psi |
| Set Point - Minimum | -13 psi |
| Overall Width | 1.18 in |
| Operating Temperature - Maximum | 158 deg F |
| Electrical Design Output | PNP |
| Manufacturer Warranty Length | 5 yr |
| Pressure - Maximum | 145 psi |
| Pressure Connection Type | G1/8 BSP |
| Set Point - Maximum | 145 psi |
| Output Current Rating | 0.1 A |
| Operating Temperature - Minimum | 32 deg F |
| Voltage Rating - Maximum | 32 V DC |
| Overall Height | 1.65 in |
| Overall Depth | 1.26 in |
| Reset Point - Minimum | -14 psi |
| Compatible Media | Compressed Air |
| Package Quantity | 1 |
