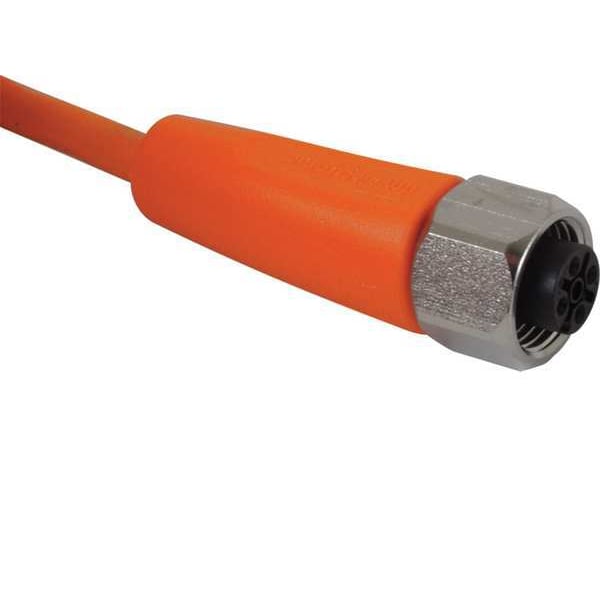

Conector de cable, 5 pines, receptáculo, hembra.
| Item | Connecting Cable With Socket |
|---|---|
| Cable Length | 10 m |
| Jacket Color | Orange |
| End 1 Number of Pins | 5 |
| Max. Voltage | 250VAC/300VDC |
| End 1 Thread | M12 |
| Wire Size | 22 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Max. Amps | 4 |
| Jacket Material | PVC |
| Number of Conductors | 4 |
| End 2 Gender and Plug End | Bare Wire |
| End 1 Keyway | Single |
| Standards | cRUus Approval |
| End 1 Gender and Plug End | Female Straight |
| Features | Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability |
| Temp. Range | -25 to 100 deg C |
| IP Rating | IP65, IP67, IP68, IP69K |
| For Use With | Hygienic And Wet Areas In The Food Industry |
| Color | Orange |
| End 1 Number of Keyways | 1 |
| End 1 Mounting Orientation | Straight |
| Minimum Operating Temperature | -13 deg F |
| Cordset Type | Single-Ended |
| End 1 Gender | Female |
| Maximum Operating Temperature | 122 deg F |
| Cable Jacket Material | PVC |
| Number of Wires | 4 |
| Cable Jacket Color | Orange |
| Application | hygienic and wet areas in the food industry |
| End 2 Gender | Not Applicable |
| Electrical connection | Cable: 10 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Operating voltage [V] | < 250 AC / < 300 DC |
| Storage temperature [°C] | -25...55 |
| Ambient temperature [°C] | -25...100 |
| Protection class | II |
| Ambient temperature (moving) [°C] | 5...100 |
| Max. current load total [A] | 4 |
| Material nut | stainless steel |
| Special feature | Free from silicone; Gold-plated contacts; Drag chain suitability |
| Protection | IP 65, IP 67, IP 68; IP 69K |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Materials | Sealing: EPDM, housing: PVC orange |
| Dimensions [mm] | 15.5 x 15.5 x 45 |
| Storage humidity [%] | 10...100 |
| Connection | Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
| Package Quantity | 1 |
