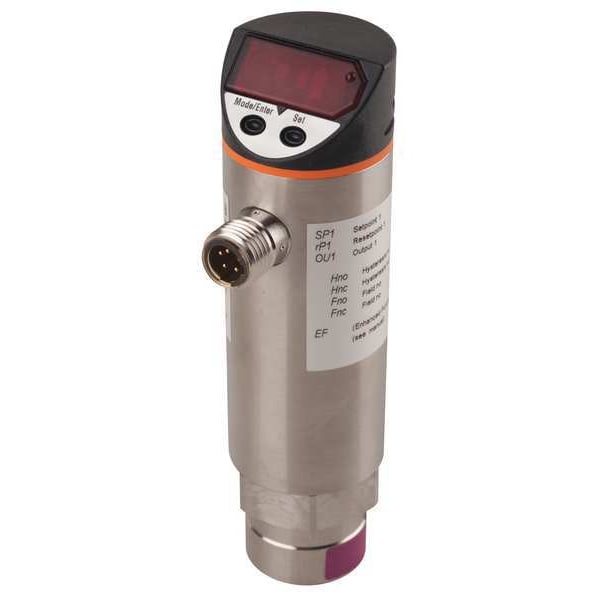

Interruptor de presión digital, SPST, de 0 a 145 psi.
| Item | Digital Pressure Switch |
|---|---|
| Pressure Switch Range | 0 to 145 psi |
| Pressure Switch Electrical Contact Form | SPST |
| Burst Pressure | 2,175 psi |
| Electrical Connection | 5 Pin 1/2 in 20UNF Connector |
| Output Current | 2.5A @ 20 Degrees C |
| IP Rating | 65 |
| Power Required | 45 to 65 Hz, 90 to 250V AC |
| Compatible With | Air, Liquids |
| Process Connection | 1/4 in FNPT |
| Off Set Point | 1 to 144 psi |
| Circuit Type | Triac |
| Temp. Range | 13 Degrees to 176 Degrees F |
| Housing Material | Stainless Steel |
| On Set Point | 1 to 145 psi |
| Contact Form | SPST |
| Range | 0 to 145 psi |
| Wetted Materials | Stainless Steel |
| Application | for industrial applications |
| Display | switching status LED, red function display 7-segment LED display measured values 7-segment LED display |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Current consumption [mA] | < 10 |
| Total number of outputs | 1 |
| Medium temperature [°C] | -25...80 |
| Min. pressure cycles | 100 million |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| Adjustment of the switch point | programming button |
| Temperature coefficient zero point [% of the span / 10 K] | <± 0,2; |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤5 A; fast acting |
| Long-term stability [% of the span] | <± 0,1; (per year) |
| Electrical design | Triac |
| Parameter setting options | hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit |
| Max. voltage drop switching output AC [V] | 2 |
| Pressure rating | 75 bar 1088 psi 7500 kPa |
| Delay time programmable dS, dr [s] | 0, 0,2,...10, 11,...50 |
| Protection | IP 65 |
| Switching frequency AC [Hz] | < 160 |
| Number of inputs and outputs | Number of digital outputs: 1 |
| Min. bursting pressure | 150 bar 2175 psi 15000 kPa |
| Protection class | II |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V |
| Number of digital outputs | 1 |
| Integrated watchdog | yes |
| Switch point accuracy [% of the span] | <± 1,0 |
| Restrictor element integrated | no (can be retrofitted) |
| Materials | FKM, PC, PBT, PA, stainless steel |
| Reverse polarity protection | no |
| Output function | normally open / normally closed; |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Reset point rP | 0.05...9.95 bar 1...144 psi 5...994 kPa |
| Damping process value dAP [s] | 0...4 |
| In steps of | 0.01 bar 1 psi 1 kPa |
| Operating voltage [V] | 85...265 AC |
| Materials (wetted parts) | FKM, stainless steel, ceramics |
| Type of pressure | relative pressure |
| Repeatability [% of the span] | <± 0,1; (with temperature fluctuations < 10 K) |
| Connection | Connector: 1 x 1/2"; coding: C |
| Storage temperature [°C] | -40...100 |
| Operating voltage tolerance [%] | 5...10 |
| Measuring range | 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa |
| Output signal | switching signal |
| Set point SP | 0.1...9.99 bar 1...145 psi 10...999 kPa |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| Media | gases, liquids |
| MTTF [years] | 224.58 |
| Ambient temperature [°C] | -25...80 |
| Overload protection | no |
| Temperature coefficient span [% of the span / 10 K] | <± 0,3; |
| Power-on delay time [s] | 0.2 |
| Nominal voltage AC [V] | < 250 |
| Linearity deviation [% of the span] | <± 0,5 |
| Short-circuit proof | no |
| Hysteresis deviation [% of the span] | <± 0,1 |
| Permanent current rating of switching output AC [mA] | 250; ((...70°C) 1000 (...60°C) 1500 (...45°C) 2500 (...20°C)) |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Overall Width | 1.34 in |
| Overall Depth | 1.06 in |
| Pressure - Maximum | 145 psi |
| Voltage Rating - Maximum | 265 V AC |
| Pressure Connection Type | NPT |
| Reset Point - Minimum | -14 psi |
| Operating Temperature - Maximum | 176 deg F |
| Set Point - Minimum | 1 psi |
| Reset Point - Maximum | 144 psi |
| Compatible Media | Gas, Liquid |
| Output Current Rating | 2.5 A |
| Overall Height | 4.72 in |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty Length | 5 yr |
| Set Point - Maximum | 145 psi |
| Electrical Design Output | Triac |
| Pressure - Minimum | 0 psi |
| Package Quantity | 1 |
