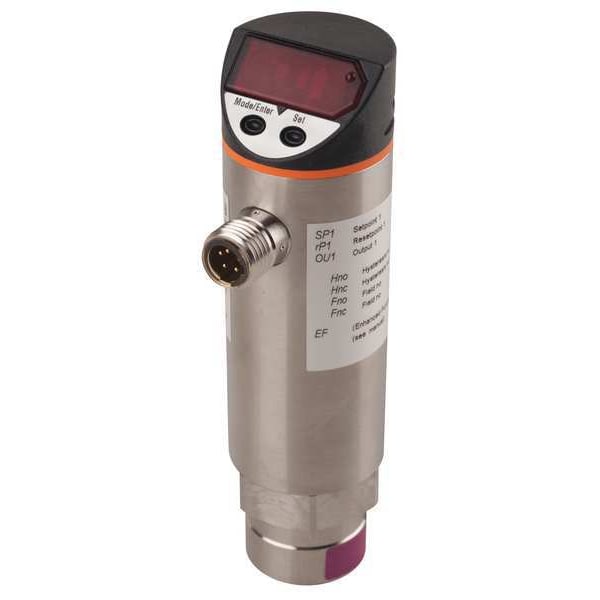

Interruptor de presión digital de un solo polo, un solo tiro, de 0 a 14.5 psi.
| Item | Digital Pressure Switch |
|---|---|
| Pressure Switch Range | 0 to 14.5 psi |
| Pressure Switch Electrical Contact Form | SPST |
| Off Set Point | 0.1 to 14.5 psi |
| Circuit Type | Triac |
| Housing Material | Stainless Steel |
| IP Rating | 65 |
| Power Required | 45 to 65 Hz, 90 to 250V AC |
| Electrical Connection | 5 Pin 1/2 in 20UNF Connector |
| On Set Point | 0.1 to 14.6 psi |
| Contact Form | SPST |
| Process Connection | 1/4 in FNPT |
| Range | 0 to 14.5 psi |
| Output Current | 2.5A @ 20 Degrees C |
| Compatible With | Air, Liquids |
| Wetted Materials | Stainless Steel |
| Burst Pressure | 430 psi |
| Temp. Range | 13 Degrees to 176 Degrees F |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Pressure - Minimum | 0 psi |
| Electrical Design Output | Triac |
| Compatible Media | Gas, Liquid |
| Set Point - Maximum | 14.6 psi |
| Reset Point - Minimum | 0.05 psi |
| Output Current Rating | 2.5 A |
| Overall Height | 4.72 in |
| Pressure Connection Type | NPT |
| Set Point - Minimum | 0.1 psi |
| Voltage Rating - Maximum | 265 V AC |
| Overall Width | 1.34 in |
| Reset Point - Maximum | 14.45 psi |
| Manufacturer Warranty Length | 5 yr |
| Pressure - Maximum | 14.5 psi |
| Operating Temperature - Maximum | 176 deg F |
| Overall Depth | 1.06 in |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
