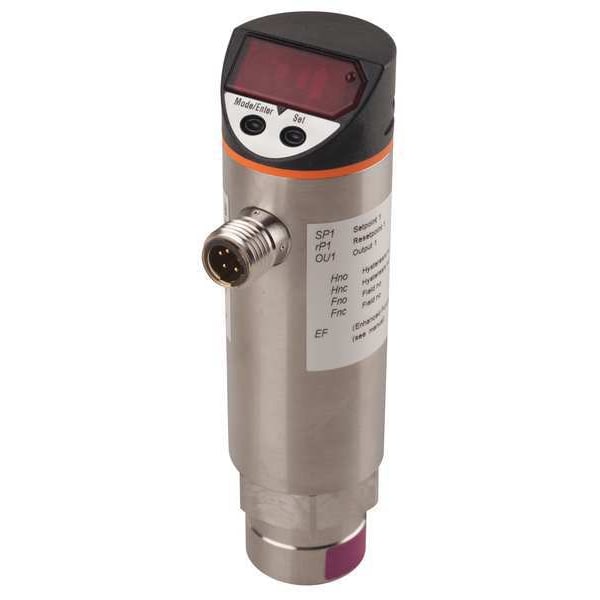

Interruptor de presión digital, SPST, de 0 a 36.3 psi.
| Item | Digital Pressure Switch |
|---|---|
| Pressure Switch Range | 0 to 36.3 psi |
| Pressure Switch Electrical Contact Form | SPST |
| Burst Pressure | 725 psi |
| Contact Form | SPST |
| Temp. Range | 13 Degrees to 176 Degrees F |
| Off Set Point | 0.2 to 36.2 psi |
| Range | 0 to 36.3 psi |
| IP Rating | 65 |
| Wetted Materials | Stainless Steel |
| Compatible With | Air, Liquids |
| Housing Material | Stainless Steel |
| Circuit Type | Triac |
| Electrical Connection | 5 Pin 1/2 in 20UNF Connector |
| Power Required | 45 to 65 Hz, 90 to 250V AC |
| Output Current | 2.5A @ 20 Degrees C |
| Process Connection | 1/4 in FNPT |
| On Set Point | 0.4 to 36.3 psi |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Voltage Rating - Maximum | 265 V AC |
| Compatible Media | Gas, Liquid |
| Pressure - Maximum | 36.2 psi |
| Electrical Design Output | Triac |
| Reset Point - Minimum | 0.2 psi |
| Overall Depth | 1.89 in |
| Manufacturer Warranty Length | 5 yr |
| Set Point - Maximum | 36.3 psi |
| Overall Height | 4.72 in |
| Operating Temperature - Maximum | 176 deg F |
| Pressure - Minimum | 0 psi |
| Overall Width | 1.34 in |
| Set Point - Minimum | 0.4 psi |
| Operating Temperature - Minimum | -13 deg F |
| Reset Point - Maximum | 36 psi |
| Pressure Connection Type | NPT |
| Output Current Rating | 2.5 A |
| Package Quantity | 1 |
