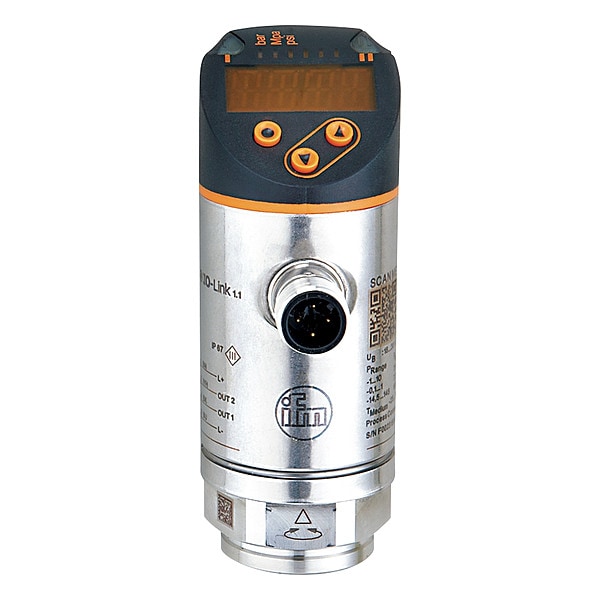

Sensor de presión electrónico, 17,400 psi.
| Item | Electronic Pressure Sensor |
|---|---|
| Range | 0 to 3,625 psi |
| Analog Output | 4 to 20mA or 0 to 10V DC |
| Control Output | PNP |
| On/Off Setting | Programmable |
| Max. Pressure | 17,400 psi |
| Power Required | 18 to 30V DC |
| Process Connection | 1/4 in NPT |
| Electrical Connection | M12 |
| Display | 4 Digit LED |
| Operating Temp. Range | -13 to 176 deg F |
| IP Rating | IP67, IP65 |
| Housing Material | PBT, Stainless Steel |
| Wetted Materials | Stainless Steel |
| Standards | CE, CRN, cULus, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DNV.COM/AF, IEC 61131-9, IO-Link, UKCA |
| Overall Height | 3.57 in |
| Application | for industrial applications |
| Overall Width | 1.34 in |
| Response time [ms] | < 1.5 |
| Current consumption [mA] | < 35 |
| IO-Link resolution pressure [bar] | 0.1 |
| Storage temperature [°C] | -40...100 |
| Max. response time analogue output [ms] | 3 |
| MTTF [years] | 124 |
| UL approval | UL Approval no. J014 |
| Number of digital outputs | 2 |
| MAWP (for applications according to CRN) | 500 bar 7250 psi 50 MPa |
| Measuring range | 0...250 bar 0...3625 psi 0...25 MPa |
| SIO mode | yes |
| Min. difference between SP and rP | 1.5 bar 15 psi 0.15 MPa, 1.1 bar 15 psi 0.11 MPa |
| Protection | IP 65, IP 67 |
| Special feature | Gold-plated contacts |
| IO-Link revision | 1.1 |
| Ambient temperature [°C] | -25...80 |
| Materials (wetted parts) | 1.4542 (17-4 PH / 630) |
| Temperature coefficient span [% of the span / 10 K] | 0,2; |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| Hysteresis deviation [% of the span] | <± 0,1; (Turn down 1:1) |
| Media | liquids, gases |
| Output signal | switching signal; analogue signal; IO-Link; |
| SDCI standard | IEC 61131-9 |
| Switching frequency DC [Hz] | < 500 |
| Permanent current rating of switching output DC [mA] | 250 |
| Delay time programmable dS, dr [s] | 0...50 |
| Temperature coefficient zero point [% of the span / 10 K] | 0,2; |
| Measuring element | metallic thin film cell |
| Required master port type | A; |
| Protection class | III |
| Reset point rP | 0.5...249 bar 8...3611 psi 0.05...24.9 MPa, 0.5...249 bar 10...3610 psi 0.05...24.9 MPa |
| Set point SP | 1.6...250 bar 23...3626 psi 0.16...25 MPa, 1.5...250 bar 25...3625 psi 0.15...25 MPa |
| Total number of outputs | 2 |
| Pressure rating | 500 bar 7250 psi 50 Mpa |
| Medium temperature [°C] | -25...80 |
| IO-Link functions (acyclical) | application specific tag |
| Operating voltage [V] | 18...30 DC; |
| Max. voltage drop switching output DC [V] | 2 |
| Type of short-circuit protection | pulsed |
| Damping process value dAP [s] | 0...4 |
| Parameter setting options | window, hysteresis ; normally open, normally closed, switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Electrical design | PNP/NPN |
| Min. process cycle time [ms] | 3, 2.3 |
| Analogue current output [mA] | 4...20; (scalable 1:5) |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
| Profiles | Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000), Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| Min. bursting pressure | 1200 bar 17400 psi 120 MPa |
| Switch point accuracy [% of the span] | <± 0,4; (Turn down 1:1) |
| Materials | PBT-GF20, PC, 1.4542 ; stainless steel ; PBT+PC-GF30 |
| Vacuum resistance [mbar] | -1000 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Type of pressure | relative pressure |
| Reverse polarity protection | yes |
| Max. load [Ω] | 500 |
| Min. pressure cycles | 100 million |
| Short-circuit protection | yes |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
| Repeatability [% of the span] | <± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Output function | normally open / normally closed; (parameterisable) |
| Min. load resistance [Ω] | 2000 |
| Damping for the analogue output dAA [s] | 0...4 |
| Long-term stability [% of the span] | <± 0,05; (Turn down 1:1; per 6 months) |
| Analogue end point | 50...250 bar 725...3625 psi 5...25 MPa |
| In steps of | 0.5 bar 5 psi 0.05 MPa, 0.1 bar 1 psi 0.01 MPa |
| Overload protection | yes |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link process data (cyclical) | function bit length pressure 14 binary switching information 2, function bit length pressure 16 device status 4 binary switching information 2 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Integrated watchdog | yes |
| Number of analogue outputs | 1 |
| Restrictor element integrated | no (can be retrofitted) |
| Analogue voltage output [V] | 0...10; (scalable 1:5) |
| Characteristics deviation [% of the span] | <± 0,25 (BFSL) / <± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) |
| Power-on delay time [s] | 0.3 |
| Communication interface | IO-Link |
| Analogue start point | 0...200 bar 0...2900 psi 0...20 MPa |
| Tightening torque [Nm] | > 50; (depends on lubrication, seal and pressure rating) |
| Max. load [Ω] | 500 |
| Medium temperature [°C] | -25...80 |
| Min. load resistance [Ω] | 2000 |
| Ambient temperature [°C] | -25...80 |
| Storage temperature [°C] | -40...100 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Analog Output Voltage - Maximum | 10 V DC |
| Pressure - Maximum | 3,625 psi |
| Manufacturer Warranty Length | 5 yr |
| Electrical Design Output | PNP, NPN |
| Voltage Rating - Maximum | 30 V DC |
| Series | PN |
| Pressure - Minimum | 0 psi |
| Analog Output Current - Maximum | 20 mA |
| Compatible Media | Liquid, Gas |
| Analog Output Current - Minimum | 4 mA |
| Pressure Connection Type | NPT |
| Operating Temperature - Minimum | -13 deg F |
| Proof Pressure | 17,400 psi |
| Analog Output Voltage - Minimum | 0 V DC |
| Operating Temperature - Maximum | 176 deg F |
| Overall Depth | 1.94 in |
| Package Quantity | 1 |
