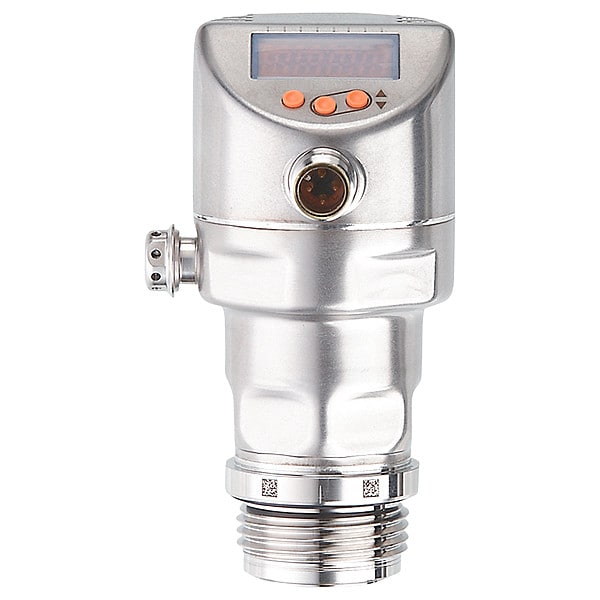

Transmisor de presión indicador, 375.6 g
| Item | Indicating Pressure Transmitter |
|---|---|
| Power Required | 18 to 30 V DC (3-Wire), 20 to 30 V DC (2-Wire) |
| Process Connection | 1 in BSPP |
| Display | Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit |
| IP Rating | IP67, IP69K, IP68 |
| Wetted Materials | 316L Stainless Steel, Ceramic, PTFE |
| Standards | 3A, ACS, CE, EC 1935/2004, EHEDG Certified, FCM, FDA, IO-Link, Reg31, UKCA, UL Listed |
| Display Screen Type | LED |
| Display Type | Digital |
| Process Connection Gender | Male |
| Electrical Connections | 4-Pin M12 Connector |
| For Use With Media Type | Gases, Liquids, Suspended Particles |
| Response Time | 3 msec, 7 msec, 30 msec |
| Weight | 375.6 g |
| Process Connection Type | BSPP |
| Output | 100 mA DC; 2 VDC |
| Maximum Operating Temperature | 80 deg C |
| Minimum Operating Temperature | -25 deg C |
| Number of Wires | 2, 3 |
| Overall Width | 64 mm |
| Minimum Pressure | -12.4 mbar |
| Overall Height | 107 mm |
| Manufacturer Warranty Length | 5 yr |
| Fitting Material | 316L Stainless Steel |
| Accuracy | +/-.2 |
| Maximum Pressure | 250 mbar |
| Housing Height | 90 mm |
| Features | High Temperature Resistance and High Protection Rating, Hygienic, Flush Design, Programmable Analog and Switching Output, Resistant to High-Pressure Cleaning with Aggressive Cleaning Agents, Robust Stainless Steel Design for the Requirements of the Food and Beverage Industry |
| Overall Length | 59 mm |
| Pressure Units | inH2O, kPa, mbar, mmWS |
| Process Connection Size | 1 in |
| Display Units | inH2O, kPa, mbar, mmWS |
| Storage Temperature Range | -40 Degrees to 100 Degrees C |
| IO-Link process data (cyclical) | function bit length pressure 32 temperature 32 device status 4 binary switching information 2 |
| UL approval | UL Approval no. J048 File number UL E174189 |
| In steps of | 0.1 mbar 0.1 inH2O 0.01 kPa 1 mmWS |
| Transmission type | COM2 (38,4 kBaud) |
| Characteristics deviation [% of the span] | <± 0,2; (DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1) |
| Measuring range | -25...150°C -13...302°F, -12.4...250 mbar -5...100.4 inH2O -1.24...25 kPa -126...2550 mmWS |
| Min. process cycle time [ms] | 5.6 |
| Special feature | Gold-plated contacts |
| Min. response time of switching output (dAP) [ms] | 3 |
| Power-on delay time [s] | < 1, < 0.5 |
| Accuracy [K] | ± 2,5+ (0,08 x ( Umgebungstemperatur - Mediumtemperatur )) |
| Analogue start point | -12.4...199.4 mbar -5...80.1 inH2O -1.24...19.94 kPa -126...2033 mmWS |
| EMC | DIN EN 61326-1 |
| Hysteresis deviation [% of the span] | <± 0,15; (Turn down 1:1) |
| Repeatability [% of the span] | <± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Step response time analogue output [ms] | 7, 30 |
| Protection class | III |
| Repeatability [K] | ± 0,2 |
| Type of short-circuit protection | pulsed |
| Dynamic response T05 / T09 [s] | < 35 / < 135; (DIN EN 60751 water ; > 0,9 m/s) |
| Display unit | inH2O, kPa, mbar, mmWS |
| Required master port type | A |
| Analogue end point | 38.2...250 mbar 15.3...100.4 inH2O 3.82...25 kPa 390...2549 mmWS |
| Permanent current rating of switching output DC [mA] | 100 |
| IO-Link revision | 1.1 |
| Integrated watchdog | yes |
| Max. voltage drop switching output DC [V] | 2 |
| Materials (wetted parts) | ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| IO-Link resolution pressure [mbar] | 0.01 |
| Current consumption [mA] | 3.5...21.5, 5...45; (430 bei max. Laststrom) |
| Number of analogue outputs | 1 |
| Storage temperature [°C] | -40...100 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Operating voltage [V] | 20...30 DC, 18...30 DC |
| Materials | FKM, PBT, PEI, PFA, PTFE, stainless steel |
| Resolution [K] | 0.2 |
| Linearity deviation [% of the span] | <± 0,15; |
| Analogue current output [mA] | 4...20, invertible; (scalable) |
| IO-Link functions (acyclical) | application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter |
| IO-Link resolution temperature [K] | 0.2 |
| Switch point accuracy [% of the span] | <± 0,2; (DIN EN IEC 62828-1; Turn down 1:1) |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
| Max. load [Ω] | (Ub - 10 V) / 21,5 mA; 650 Ω (Ub = 24 V), 300 |
| Min. pressure cycles | 100 million |
| Number of digital outputs | 2 |
| Media | liquids, viscous media ; liquids and gases |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| Short-circuit protection | yes |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| MTTF [years] | 214 |
| Protection | IP 67, IP 68; IP 69K |
| Profiles | Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A) |
| Set point SP | -12...250 mbar -4.8...100.4 inH2O -1.2...25 kPa -122...2549 mmWS |
| Reverse polarity protection | yes |
| Application | flush mountable for the food and beverage industry |
| Damping process value dAP [s] | 0...99.99 |
| SDCI standard | IEC 61131-9 |
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
| Min. difference between SP and rP | 0.5 mbar 0.2 inH2O 0.05 kPa 5 mmWS |
| Long-term stability [% of the span] | <± 0,1; (Turn down 1:1; per year) |
| Ambient temperature [°C] | -25...80 |
| Tightening torque [Nm] | 35 |
| SIO mode | yes |
| Vacuum resistance [mbar] | -1000 |
| Overload protection | yes |
| Factory setting | SP1 =62.5 mbar rP1 = 57.5 mbar SP2 = 187.5 mbar rP2 = 182.5 mbar ASP = 0.00 mbar AEP = 250 mbar dAP = 2.00 s dAA =2.00 s |
| Switching frequency DC [Hz] | 125 |
| Reset point rP | -12.4...249.6 mbar -5...100.2 inH2O -1.24...24.96 kPa -126...2545 mmWS |
| Damping for the analogue output dAA [s] | 0...99.99 |
| Pressure rating | 6000 mbar 2400 inH2O 600 kPa |
| Output signal | switching signal; analogue signal; IO-Link |
| Total deviation over temperature range | Temperature range total deviation -25...15°C Characteristics deviation± 0,1 % der Spanne / 10 K 15...80°C Characteristics deviation 80...150°C Characteristics deviation± 0,15 % der Spanne / 10 K |
| Min. bursting pressure | 30000 mbar 12044 inH2O 3000 kPa |
| Medium temperature [°C] | -25...150 |
| Electrical design | PNP/NPN |
| Total number of outputs | 2 |
| Type of pressure | relative pressure; vacuum |
