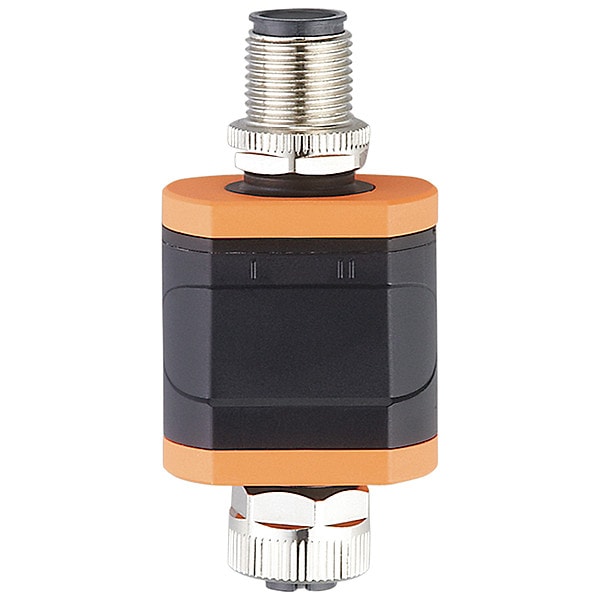

IO-Link to Analog Signal Converter, 300mA
| Standards | CE, cULus Listed, EAC, UKCA |
|---|---|
| Item | IO-Link to Analog Signal Converter |
| IO-Link Revision | 1.1 |
| Minimum Ambient Temperature | -25 Degrees C |
| Housing Material | Polyamide |
| Transmission Type | COM2 (38.4 kBaud) |
| Communication Interface | IO-Link |
| Protection Features | IP67 |
| Current Consumption | 300 mA |
| Product Type | IO-Link Converter |
| Maximum Ambient Temperature | 70 Degrees C |
| Operating Voltage | 18 to 30V DC |
| SIO mode | no |
| Materials | housing: PA |
| Protection | IP 67 |
| Profiles | Smart Sensor |
| Nominal voltage DC [V] | 24 |
| SDCI standard | IEC 61131-9 |
| Pollution degree | 2 |
| Storage temperature [°C] | -25...70 |
| Max. height above sea level [m] | 4000 |
| Number of analogue outputs | 2 |
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40°C) non condensing) |
| Analogue current output [mA] | 4...20 |
| Display | operation 1 x LED, green analogue output 2 x LED, yellow |
| Max. current load total [A] | 0.2 |
| Ambient temperature [°C] | -25...70 |
| Required master port type | A/B |
| Number of inputs and outputs | Number of analogue outputs: 2 |
| MTTF [years] | 352 |
| Precision analogue output [%] | 0,25 |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
| Max. load [Ω] | 300 |
| Accessories (optional) | mounting clip |
| Min. process cycle time [ms] | 3.6 |
| Current consumption [mA] | 300 |
| Process data analogue | 2 |
| Package Quantity | 1 |
