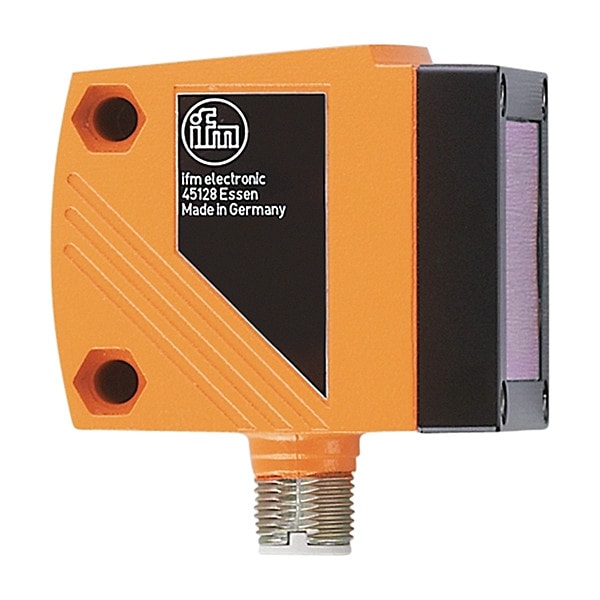

Sensor de distancia láser, 52 mm de largo, 42 mm de ancho.
| Item | Laser Distance Sensor |
|---|---|
| Display | switching status 2 x LED, yellow operation LED, green distance value, programming alphanumeric display, 4-digit |
| IP Rating | 67 |
| Circuit Type | PNP |
| Width | 42 mm |
| Depth | 59 mm |
| Operating Frequency | 50 Hz |
| Electrical Connection | M12 Connector |
| Power Requirement | 18 to 30 V DC |
| Case Material | Die-Cast Zinc |
| Length | 52 mm |
| Operating Temp. Range | -10 to 60 deg C |
| Standards | CE; cULus; EAC; UKCA |
| Output Mode | NC, NO |
| Max. Current Load | 100 mA |
| Measurement Range | 0.2 to 10 m |
| Communication interface | IO-Link |
| Overload protection | yes |
| MTTF [years] | 182 |
| Total number of outputs | 2 |
| Type of short-circuit protection | pulsed |
| Short-circuit protection | yes |
| SIO mode | yes |
| Typ. lifetime [h] | 50000 |
| Lens alignment | side lens |
| Ambient temperature [°C] | -10...60 |
| Protection class | III |
| IO-Link revision | 1.1 |
| Required master port type | A |
| Notes on laser protection | Caution: laser light Power: <= 4 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
| Operating voltage [V] | 18...30 DC; (operating voltage "supply class 2" according to cULus) |
| Dimensions [mm] | 59 x 42 x 52 |
| Analogue voltage output [V] | 0...10; (IEC 61131-2) |
| Output function | normally open / normally closed; (parameterisable) |
| Transmission type | COM2 (38,4 kBaud) |
| Max. current load per output [mA] | 200 |
| Sampling rate [Hz] | 1...50 |
| EMC | EN 60947-5-2 |
| Min. process cycle time [ms] | 6 |
| Min. load resistance [Ω] | 5000 |
| Housing | rectangular |
| Current consumption [mA] | < 150 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| Number of analogue outputs | 1 |
| Number of digital outputs | 2 |
| Light spot dimensions refer to | 10 m |
| Analogue current output [mA] | 4...20; (IEC 61131-2) |
| Background suppression [m] | 0...19 |
| Protection | IP 67 |
| Max. load [Ω] | 250 |
| Electrical design | PNP |
| Measuring range [m] | 0.2...10; (white paper 200 x 200 mm 90% remission) |
| Max. light spot width [mm] | 15 |
| Materials | diecast zinc, front pane: glass, LED window: PC |
| Laser protection class | 2 |
| Accessories (optional) | Protective cover, E21133 |
| Process data analogue | 2 |
| Max. light spot height [mm] | 15 |
| Reverse polarity protection | yes |
| Process data binary | 3 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis |
| Connection | Connector: 1 x M12; coding: A |
| Package Quantity | 1 |
