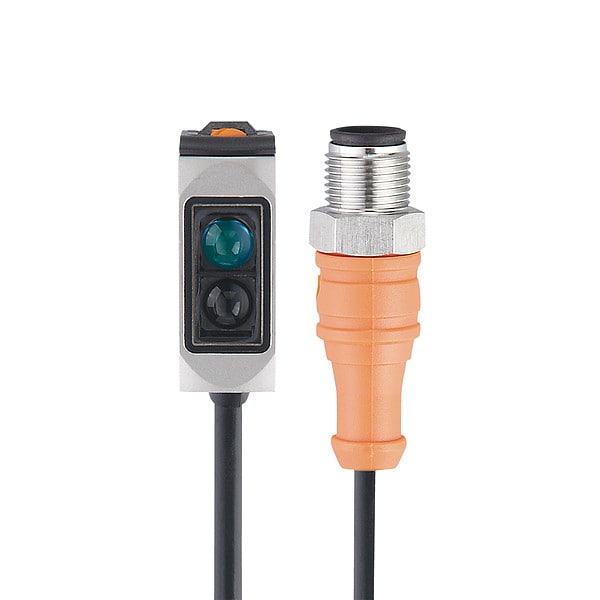

Sensor fotoeléctrico, 34.8 mm de altura, acero inoxidable 316L
| Item | Photoelectric Sensor |
|---|---|
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
| Sensing Method - Rectangular Photoelectric Sensor | Diffuse |
| IP Rating | 65, 67, 68, 69K |
| Power Requirement - Rectangular Photoelectric Sensor | 10 to 30 V DC |
| Output Circuit Type - Rectangular Photoelectric Sensor | PNP |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 200 mm |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Height - Rectangular Photoelectric Sensor | 34.8 mm |
| Min. Object Size | 200 x 200mm |
| Features | High Protection Rating for the Requirements of Harsh Industrial Environments, Intuitive Setting of Range and Output Function, Precise Background Suppression Sensing on Highly Reflective Background, Resistant to High-Pressure Cleaning with Aggressive Cleaning Agents |
| Width - Rectangular Photoelectric Sensor | 21 mm |
| Operating Temp. Range | -25 to 80 deg C |
| Body Material | 316L Stainless Steel |
| Standards | CA, CE Approval, cUL Listed, EAC, EMC EN 60947-5-2, MTTF 708, UL E006 |
| Depth - Rectangular Photoelectric Sensor | 13 mm |
| Light Source | Green LED |
| Permanent current rating of switching output DC [mA] | 100 |
| Lens material | PMMA |
| Max. voltage drop switching output DC [V] | 2.5 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Function principle | Diffuse reflection sensor |
| Background suppression available | yes |
| Type of short-circuit protection | pulsed |
| Connection | Connector: 1 x M12; coding: A, Cable: 0.3 m, PVC; 3 x 0.25 mm² |
| Light spot dimensions refer to | at maximum range |
| Electrical design | PNP |
| Range on grey object (18 % remission) [mm] | 4...200 |
| Reverse polarity protection | yes |
| Output function | light-on/dark-on mode; (selectable) |
| Short-circuit protection | yes |
| EMC | EN 60947-5-2 |
| Materials | EPDM, PPSU, housing: stainless steel |
| Operating voltage [V] | 10...30 DC |
| Protection class | III |
| Range on white object (90 % remission) [mm] | 2...200 |
| UL approval | UL Approval no. E006 |
| Wave length [nm] | 633 |
| Lens alignment | side lens |
| Max. light spot diameter [mm] | 8 |
| Ambient temperature [°C] | -25...80 |
| Range on black object (6 % remission) [mm] | 8...200 |
| Range adjustable | yes |
| Type of light | red light |
| Switching frequency DC [Hz] | 1,000 |
| Range [mm] | 2...200; (white paper 200 x 200 mm) |
| Housing | rectangular |
| MTTF [years] | 708 |
| Tightening torque [Nm] | 1; (screws) |
| Current consumption [mA] | 22 |
| Special feature | Background suppression |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
