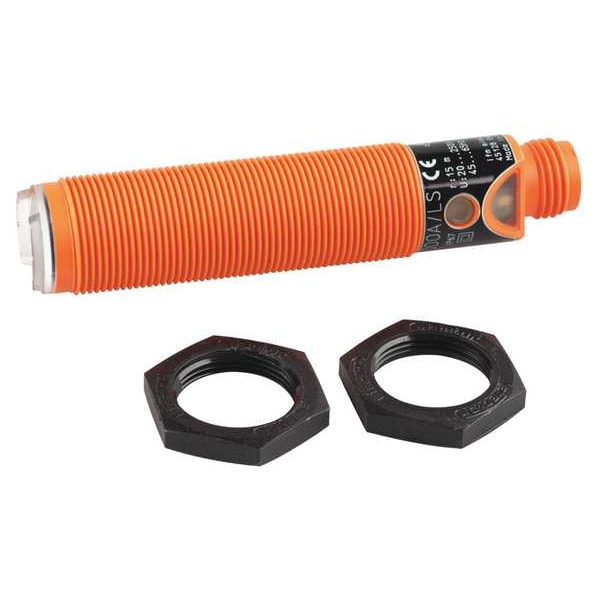

Sensor fotoeléctrico, cilindro, reflectante.
| Item | Cylindrical Photoelectric Sensor |
|---|---|
| Display | switching status 1 x LED, red function 1 x LED, red flashing |
| Circuit Type | AC |
| IP Rating | 67 |
| Operating Mode - Photoelectric Sensor | Light On |
| Max. Load Current | 180 mA |
| Operating Frequency | 25 Hz |
| Electrical Connection | Quick Disconnect 1/2" Connector |
| Operating Temp. Range | -25 to 80 deg C |
| Power Requirement | 20 to 250VAC/DC |
| Sensing Method | Retroreflective |
| Power Requirement - Cylindrical Photoelectric Sensor | 20 to 250V AC/DC |
| Sensing Method - Cylindrical Photoelectric Sensor | Retroreflective |
| Body Material | PBT |
| Features | PMMA Lens |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 3 m |
| Circuit Type - Cylindrical Photoelectric Sensor | AC |
| Length - Cylindrical Photoelectric Sensor | 86 mm |
| Light Source | Red LED |
| Min. Object Size | 262 mm dia (Light Spot) |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Standards | CE Approval |
| Diameter | 18 mm |
| Operation Mode | Light On |
| Shape | Cylindrical |
| Electrical Connection - Cylindrical Photoelectric Sensor | Male Connector |
| Max. Sensing Distance | 3 m |
| Length | 86 mm |
| NEMA Rating | Not Rated |
| Operating voltage [V] | 20...250 AC/DC |
| Minimum load current [mA] | 5 |
| Protection class | II |
| Output function | light-on mode |
| Max. light spot diameter [mm] | 262 |
| Switching frequency DC [Hz] | 25 |
| Permanent current rating of switching output AC [mA] | 90; (180 (...40°C)) |
| Function principle | Retro-reflective sensor |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting |
| Range referred to prismatic reflector [m] | 3; (Prismatic reflector Ø 80 E20005) |
| Dimensions [mm] | M18 x 1 / L = 76 |
| Polarisation filter available | yes |
| MTTF [years] | 339 |
| Permanent current rating of switching output DC [mA] | 90 |
| Switching frequency AC [Hz] | 25 |
| Overload protection | no |
| Thread designation | M18 x 1 |
| Protection | IP 67 |
| Wave length [nm] | 660 |
| Short-time current rating of switching output [mA] | 600; (20 ms / 0,5 Hz) |
| Type of light | red light |
| Max. voltage drop switching output AC [V] | 8 |
| Ambient temperature [°C] | -25...80 |
| Materials | PBT |
| Lens material | PMMA |
| Light spot dimensions refer to | at maximum range |
| EMC | EN 60947-5-2 EN 55011 class B |
| Reverse polarity protection | no |
| Range adjustable | yes |
| Frequency AC [Hz] | 47...63 |
| Max. voltage drop switching output DC [V] | 8 |
| Connection | Connector: 1 x 1/2"; coding: C |
| Max. leakage current [mA] | 1.7 |
| Items supplied | 2 x (lock nuts) |
| Special feature | polarisation filter |
| Housing | threaded type |
| Short-circuit proof | no |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
