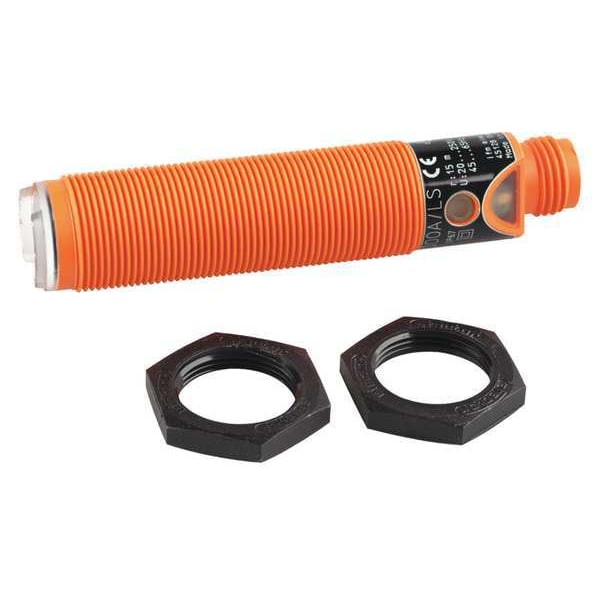

Sensor fotoeléctrico, Cilíndrico, de Haz a través.
| Item | Cylindrical Photoelectric Sensor Transmitter |
|---|---|
| Display | operation 1 x LED, green |
| IP Rating | 67 |
| Operating Mode - Photoelectric Sensor | Light On |
| Operating Frequency | 25 Hz |
| Body Material | PBT |
| Power Requirement - Cylindrical Photoelectric Sensor | 20 to 250V AC/DC |
| Standards | CE Approval |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Transmitter |
| Min. Object Size | 2,000 mm dia (Light Spot) |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | Transmitter |
| Operating Temp. Range | -25 to 80 deg C |
| NEMA Rating | Not Rated |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Features | PMMA Lens |
| Electrical Connection - Cylindrical Photoelectric Sensor | Male Connector |
| Length - Cylindrical Photoelectric Sensor | 86 mm |
| Circuit Type - Cylindrical Photoelectric Sensor | AC |
| Light Source | Infrared LED |
| Operating voltage [V] | 20...250 AC/DC |
| Items supplied | 2 x (lock nuts) |
| Thread designation | M18 x 1 |
| Transmitter / receiver | transmitter |
| Light spot dimensions refer to | at maximum range |
| Overload protection | no |
| Function principle | Through-beam sensor |
| Range adjustable | no |
| Materials | PBT |
| Range [m] | < 15 |
| Short-circuit protection | no |
| Protection | IP 67 |
| Frequency AC [Hz] | 47...63 |
| EMC | EN 60947-5-2 |
| Type of light | infrared light |
| Connection | Connector: 1 x 1/2"; coding: C |
| Current consumption [mA] | < 5 |
| Wave length [nm] | 880 |
| Ambient temperature [°C] | -25...80 |
| MTTF [years] | 1,662 |
| Protection class | II |
| Dimensions [mm] | M18 x 1 / L = 76 |
| Lens material | PMMA |
| Housing | threaded type |
| Max. light spot diameter [mm] | 2,000 |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
