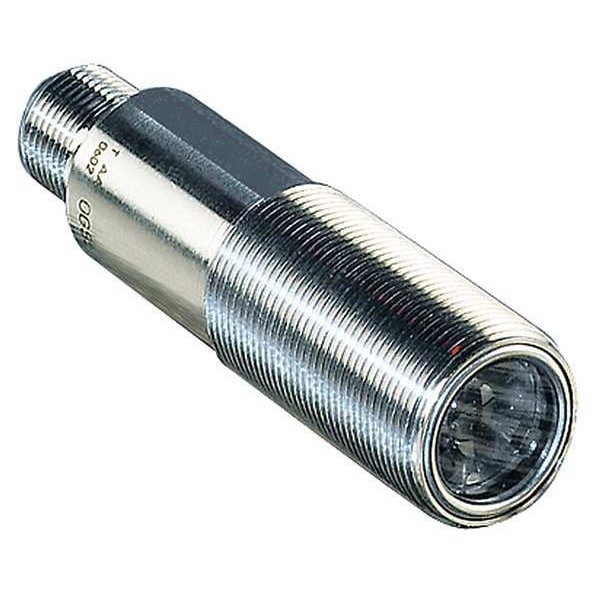

Sensor fotoeléctrico, cilindro, de haz a través.
| Item | Cylindrical Photoelectric Sensor Receiver |
|---|---|
| Display | switching status 1 x LED, yellow |
| IP Rating | 67 |
| Circuit Type | PNP |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 200 mA |
| Operating Frequency | 1,000 Hz |
| Electrical Connection | Quick Disconnect M12 Connector |
| Shape | Cylindrical |
| Length | 72 mm |
| Sensing Method | Through Beam Receiver |
| Operating Temp. Range | -25 to 80 deg C |
| NEMA Rating | Not Rated |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Receiver |
| Circuit Type - Cylindrical Photoelectric Sensor | PNP |
| Features | PMMA Lens, Reverse Polarity and Overload Protection |
| Power Requirement - Cylindrical Photoelectric Sensor | 10 to 36 V DC |
| Diameter | 18 mm |
| Max. Sensing Distance | 25 m |
| Body Material | 316L Stainless Steel/1.4404, PA, LCP, EPDM, TPU (Urethane) |
| Operation Mode | Dark On, Selectable Light On |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 25 m |
| Length - Cylindrical Photoelectric Sensor | 72 mm |
| Power Requirement | 10 to 36VDC |
| Electrical Connection - Cylindrical Photoelectric Sensor | Male Connector |
| Light Source | Red LED |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Standards | CE Approval, CUL Listed, UL Listed |
| Protection | IP 67 |
| Operating voltage [V] | 10...36 DC |
| Connection | Connector: 1 x M12; coding: A |
| Factory setting | dark-on mode |
| MTTF [years] | 786 |
| Ambient temperature [°C] | -25...80 |
| Max. voltage drop switching output DC [V] | 2.5 |
| Materials | EPDM, PA, stainless steel, LCP, TPU |
| Wave length [nm] | 624 |
| Housing | threaded type |
| Thread designation | M18 x 1 |
| Permanent current rating of switching output DC [mA] | 150 |
| Lens material | PMMA |
| Function principle | Through-beam sensor |
| Items supplied | 2 x (lock nuts) |
| Current consumption [mA] | 11 |
| Electrical design | PNP |
| Range adjustable | yes |
| Short-circuit protection | yes |
| Protection class | II |
| Reverse polarity protection | yes |
| Overload protection | yes |
| Transmitter / receiver | receiver |
| Switching frequency DC [Hz] | 1,000 |
| Type of light | red light |
| Type of short-circuit protection | pulsed |
| Output function | light-on/dark-on mode; (programmable) |
| Range [m] | < 25 |
| Dimensions [mm] | M18 x 1 / L = 72 |
| EMC | EN 60947-5-2 |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
