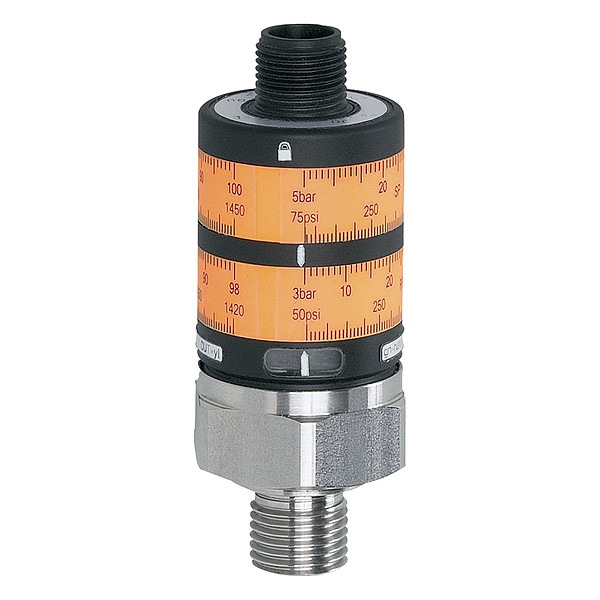

Interruptor de Presión, (2) SPST, 0 a 5800 psi
| Item | Pressure Switch |
|---|---|
| Pressure Switch Range | 0 to 5,800 psi |
| Pressure Switch Electrical Contact Form | (2) SPST |
| Burst Pressure | 23,200 psi |
| DC Contact Rating | 500 mA @ 10 to 32V DC |
| Compatible With | Air, Liquids |
| Power Required | 10 to 32V DC |
| Process Connection | 1/4 in MNPT |
| Electrical Connection | 4 Pin M12 Connector |
| AC Contact Rating | Not Applicable |
| Range | 0 to 5,800 psi |
| Operating Temp. Range | 13 to 176 deg F |
| On Set Point | 290 to 5,800 psi |
| Circuit Type | Electronic PNP |
| Contact Form | (2) SPST |
| Off Set Point | 175 to 5,685 psi |
| Wetted Materials | 316 Stainless Steel |
| Housing Material | Stainless Steel |
| Standards | CE, DIN IEC 68-2-27, DIN IEC 68-2-6, EMC Approval, UL Listed |
| NEMA Rating | Not Rated |
| IP Rating | 67 |
| Display | operation LED, green switching status LED, yellow |
| Application | for industrial applications |
| Series | PK |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| Reverse polarity protection | yes |
| Current consumption [mA] | < 25 |
| Measuring range | 0...400 bar 0...5800 psi |
| Output function | complementary |
| Medium temperature [°C] | -25...80 |
| Storage temperature [°C] | -40...100 |
| MTTF [years] | 641 |
| Materials (wetted parts) | stainless steel |
| Switching frequency DC [Hz] | 100 |
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
| Type of pressure | relative pressure |
| Media | gases, liquids |
| Materials | FKM, PC, PBT ; stainless steel |
| Overload protection | yes |
| Adjustment of the switch point | setting rings |
| Operating voltage [V] | 9.6...32 DC |
| Electrical design | PNP |
| Protection class | III |
| Temperature drift per 10 K | <± 0.5 |
| Number of digital outputs | 2 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Pressure rating | 1,199.8439 bar |
| Switch point accuracy [% of the final value] | <± 2,5; (Setting accuracy) |
| Permanent current rating of switching output DC [mA] | 500 |
| Ambient temperature [°C] | -25...80 |
| Output signal | switching signal |
| With scale | yes |
| Min. pressure cycles | 50 million |
| Reset point rP | 12...392 bar 175...5685 psi |
| Restrictor element integrated | no (can be retrofitted) |
| Set point SP | 20...400 bar 290...5800 psi |
| Short-circuit protection | yes |
| Protection | IP 67 |
| Type of short-circuit protection | pulsed |
| Min. bursting pressure | 3,199.5837 bar |
| Repeatability [% of the final value] | <± 0,5; (with temperature fluctuations < 10 K) |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Max. voltage drop switching output DC [V] | 2 |
| Connection | Connector: 1 x M12; coding: A |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| Total number of outputs | 2 |
| Characteristics deviation [% of the final value] | <± 1,5 (BFSL) / <± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Pressure Connection Type | NPT |
| Electrical Design Output | PNP |
| Pressure - Maximum | 5,800 psi |
| Reset Point - Maximum | 5,685 psi |
| Reset Point - Minimum | 175 psi |
| Actuator Style | Transducer |
| Adjustable Range Type | Field Adjustable |
| NEMA Enclosure Rating | Not Rated |
| Compatible Media | Gas, Liquid |
| Operating Temperature - Minimum | -13 deg F |
| Set Point - Maximum | 5,800 psi |
| Set Point - Minimum | 290 psi |
| Operating Temperature - Maximum | 176 deg F |
| Resistance Properties | Insulation Resistant, Shock Resistant, Vibration Resistant |
| Pressure - Minimum | 0 psi |
| Package Quantity | 1 |
