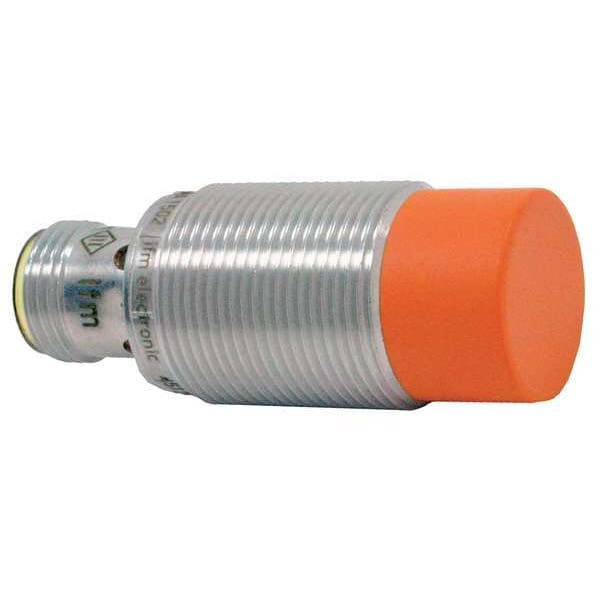

Sensor de proximidad inductivo de 12 mm, NPN, normalmente abierto, con conector rápido.
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Length | 45 mm |
| Proximity Sensor Diameter | 18 mm |
| Max. Detecting Distance | 12 mm |
| Proximity Sensor Electrical Connection | 4 Pin M12 Connector |
| Basic Proximity Sensor Case Material | Metal |
| Shielded / Unshielded | Unshielded |
| Proximity Sensor Operating Frequency | 300 Hz |
| Case Material | Brass White Bronze Coated |
| Includes | (2) Lock Nuts |
| Max. Current Load | 100 mA |
| Description/Special Features | Overload And Short Protection |
| IP Rating | 67, 69K, 68, 65, 66 |
| Operating Temp. Range | -40 to 185 deg F |
| Standards | CUL Listed |
| Length (Straight Wireway) | 45 mm |
| Operating voltage [V] | 10...30 DC |
| Current consumption [mA] | < 10 |
| Overload protection | yes |
| Mounting | non-flush mountable |
| Short-circuit protection | yes |
| Materials | brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Output function | normally open |
| Vibration resistance | EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Thread designation | M18 x 1 |
| Housing | threaded type |
| Protection class | III |
| Application | Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation |
| Items supplied | 2 (lock nuts) |
| MTTF [years] | 1,598 |
| Hysteresis [% of Sr] | 3...15 |
| Special feature | Gold-plated contacts; Increased sensing range |
| Embedded software included | yes |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
| Switch point drift [% of Sr] | -10...10 |
| Salt spray test | EN 60068-2-52 Kb severity level 5 (4 test cycles) |
| Permanent current rating of switching output DC [mA] | 100 |
| Max. voltage drop switching output DC [V] | 2.5 |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
| UL approval | Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A001 File number UL E174191 |
| Dimensions [mm] | M18 x 1 / L = 45 |
| Electrical design | NPN |
| Shock resistance | EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Display | switching status 4 x LED, yellow |
| Real sensing range Sr [mm] | 12± 10 % |
| Reverse polarity protection | yes |
| Fast temperature change | EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles |
| Sensing range [mm] | 12 |
| Ambient temperature [°C] | -40...85 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Operating distance [mm] | 0...9.72 |
| Switching frequency DC [Hz] | 300 |
| Increased sensing range | yes |
| Continuous shock resistance | EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
| Ambient temperature [°C] | -40...85 |
| Package Quantity | 1 |
