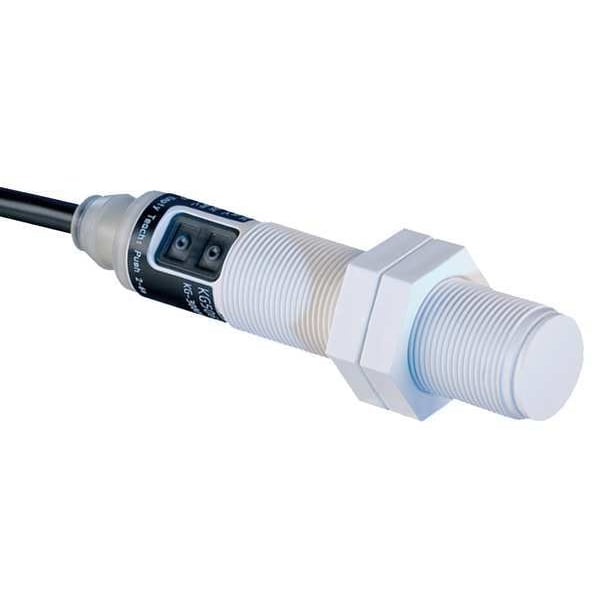

Sensor de proximidad, capacitivo, 8mm, PNP/NPN.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 10 to 36 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire PNP/NPN |
| Output Mode | NO/NC |
| Proximity Sensor Diameter | 18 mm |
| Length | 88 mm |
| Max. Detecting Distance | 8 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | PP |
| Proximity Sensor Operating Frequency | 10 Hz |
| Max. Current Load | 200 mA |
| Operating Temp. Range | -13 to 176 deg F |
| Description/Special Features | Overload And Short-Circuit Protection, Yellow LED Output Indication |
| Standards | CE Compliance, cUL Listed |
| IP Rating | 65, 67 |
| Includes | (2) Lock Nuts |
| Length (Straight Wireway) | 88 mm |
| Switch point drift [% of Sr] | -20...20 |
| Display | switching status 1 x LED, yellow |
| Housing | threaded type |
| Short-circuit proof | yes |
| Materials | housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U |
| Protection | IP 65; IP 67 |
| Dimensions [mm] | M18 x 1 / L = 77 |
| Mounting | non-flush mountable |
| Overload protection | yes |
| Vibration resistance | EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| MTTF [years] | 560 |
| Ambient temperature [°C] | -25...80 |
| Teach function | yes |
| Output function | normally open / normally closed; |
| Thread designation | M18 x 1 |
| EMC | EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B |
| Electrical design | PNP/NPN; |
| Sensing range [mm] | 8 |
| Current consumption [mA] | < 20 |
| Communication interface | IO-Link |
| Shock resistance | EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| Switching frequency DC [Hz] | 10 |
| Min. process cycle time [ms] | 101 |
| Transmission type | COM1 |
| Operating voltage [V] | 10...36 DC |
| Max. voltage drop switching output DC [V] | 2.5 |
| IO-Link revision | 1.1 |
| Items supplied | 2 (lock nuts) |
| Measuring principle | capacitive |
| Reverse polarity protection | yes |
| Electronic lock | yes |
| Profiles | Smart Sensor |
| Connection | Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm² |
| SIO mode | yes |
| Protection class | II |
| SDCI standard | IEC 61131-9 CDV |
| Hysteresis [% of Sr] | 1...15 |
| Permanent current rating of switching output DC [mA] | 200 |
| Measuring principle | capacitive |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
