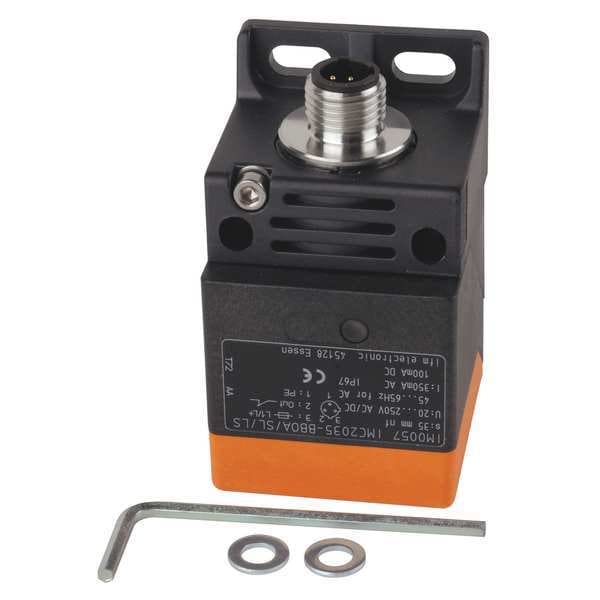

Sensor de proximidad rectangular, 3 cables, normalmente cerrado, sin blindaje.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 3 Wire |
| Output Mode | NC |
| Length | 66 mm |
| Width | 40 mm |
| Max. Detecting Distance | 35 mm |
| Proximity Sensor Electrical Connection | Male Connector |
| Depth | 40 mm |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | PPE, PPS |
| Proximity Sensor Operating Frequency | 25 Hz AC/50 Hz DC |
| Standards | CE Compliance |
| Description/Special Features | Yellow LED Output Indication |
| Max. Current Load | 2.5 mA |
| IP Rating | 67 |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 66 mm |
| Switching frequency AC [Hz] | 20 |
| Max. voltage drop switching output AC [V] | 6.5 |
| Special feature | Increased sensing range |
| EMC | EN 60947-5-2 EN 55011 class B |
| Short-circuit proof | no |
| Hysteresis [% of Sr] | 3...15 |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting |
| Housing | rectangular |
| Operating voltage [V] | 20...250 AC/DC |
| Output function | normally closed |
| Minimum load current [mA] | 1.9 |
| Increased sensing range | yes |
| Permanent current rating of switching output DC [mA] | 100 |
| Ambient temperature [°C] | -25...70 |
| Reverse polarity protection | no |
| Electrical connection | Connector: 1 x 1/2"; coding: C; Locking: brass, white bronze coated |
| Materials | housing: PPE; sensing face: PPE orange; end cap: PPS; clamp: PPS black; screw: steel galvanised |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Max. voltage drop switching output DC [V] | 6 |
| Operating distance [mm] | 0...28.3 |
| Protection | IP 67 |
| Switching frequency DC [Hz] | 50 |
| Permanent current rating of switching output AC [mA] | 250 |
| Mounting | non-flush mountable |
| Sensing range [mm] | 35 |
| Max. leakage current [mA] | 0.8, 2.5 / 1.3 |
| Protection class | I |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
| Overload protection | no |
| Display | switching status 1 x LED, yellow |
| MTTF [years] | 600 |
| Ambient temperature [°C] | -25...70 |
| Package Quantity | 1 |
