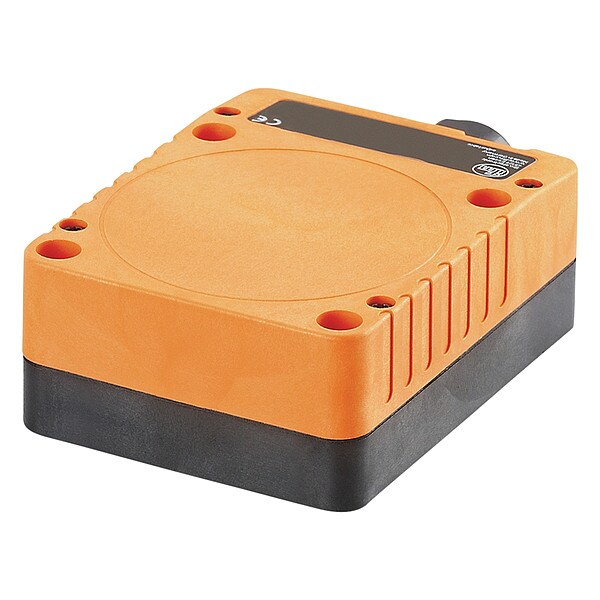

Sensor de proximidad rectangular, capacitivo, PNP/NPN.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | PNP/NPN |
| Output Mode | NO/NC |
| Length | 105 mm |
| Max. Detecting Distance | 60 mm |
| Width | 80 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | Connector |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | PPE |
| Proximity Sensor Operating Frequency | 10 Hz |
| Max. Current Load | 2 mA |
| IP Rating | 65 |
| Description/Special Features | Red LED Output Indication |
| Includes | Screwdriver |
| Operating Temp. Range | -13 to 176 deg F |
| Length (Straight Wireway) | 105 mm |
| Ambient temperature [°C] | -25...80 |
| Operating voltage [V] | 20...250 AC/DC |
| Switching frequency DC [Hz] | 10 |
| Materials | PPE |
| Housing | rectangular |
| Protection | IP 65 |
| Sensing range adjustable | yes |
| Minimum load current [mA] | 5 |
| Max. voltage drop switching output DC [V] | 8.5 |
| Electrical connection | Connector: 1 x 7/8"; coding: A |
| Reverse polarity protection | no |
| Real sensing range Sr [mm] | 60± 10 % |
| Hysteresis [% of Sr] | 1...15 |
| Switching frequency AC [Hz] | 10 |
| Max. voltage drop switching output AC [V] | 8.5 |
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Mounting | non-flush mountable |
| Items supplied | 1 (screwdriver) |
| Short-circuit proof | no |
| Protection class | II |
| Switch point drift [% of Sr] | -15...15 |
| Operating distance [mm] | 0...48.6 |
| Overload protection | no |
| EMC | EN 60947-5-2 |
| Factory setting sensing range [mm] | 60 |
| Output function | normally open / normally closed; |
| Display | switching status 1 x LED, red |
| Max. leakage current [mA] | 0.8, 2.5 / 1.3 |
| Increased immunity | yes; |
| Sensing range [mm] | 60 |
| Permanent current rating of switching output DC [mA] | 100 |
| Permanent current rating of switching output AC [mA] | 200 |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
