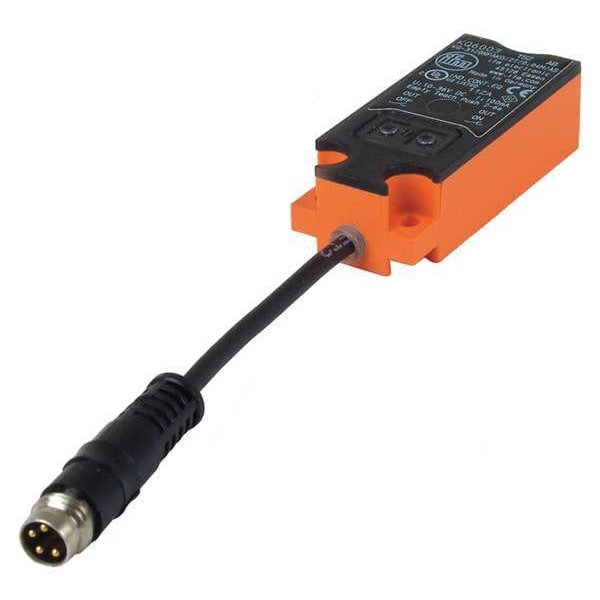

Sensor de proximidad rectangular, capacitivo, PNP/NPN.
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | PNP/NPN |
| Output Mode | NO/NC |
| Length | 48 mm |
| Max. Detecting Distance | 12 mm |
| Width | 20 mm |
| Depth | 14 mm |
| Proximity Sensor Electrical Connection | M8 Connector |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Plastic |
| Proximity Sensor Operating Frequency | 10 Hz |
| Case Material | PBT |
| Max. Current Load | 100 mA |
| Operating Temp. Range | -13 to 176 deg F |
| Standards | CE Compliance, cUL Listed |
| Description/Special Features | Short-Circuit and Overload Protection, Yellow LED Output Indication |
| IP Rating | 65, 67 |
| Length (Straight Wireway) | 48 mm |
| Package Quantity | 1 |
