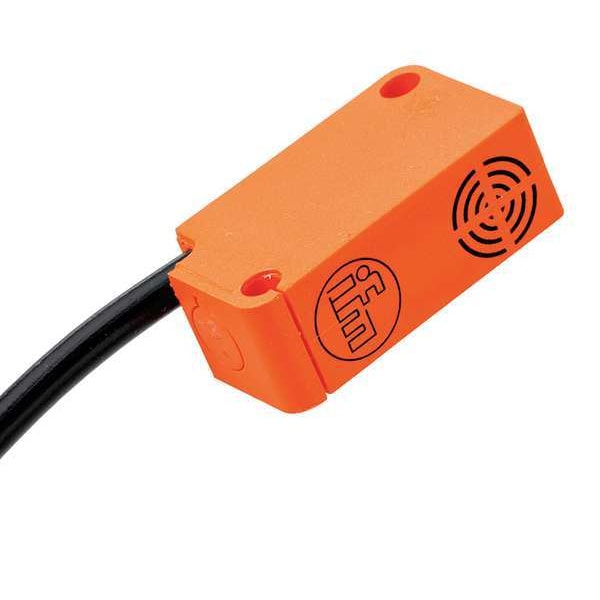

Sensor de Proximidad Rectangular, 12 a 24VDC, NPN
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 36 V DC |
| Proximity Sensor Output Circuit Type | NPN |
| Output Mode | NO |
| Length | 28 mm |
| Width | 10 mm |
| Max. Detecting Distance | 2 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 16 mm |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Shielded |
| Case Material | PBT |
| Proximity Sensor Operating Frequency | 800 Hz |
| Standards | CE Compliance, cUL Listed |
| Operating Temp. Range | -13 to 176 deg F |
| IP Rating | 67 |
| Max. Current Load | 200 mA |
| Description/Special Features | 1 Yellow LED For Output State |
| Length (Straight Wireway) | 28 mm |
| Type of short-circuit protection | pulsed |
| Protection | IP 67 |
| Tightening torque [Nm] | < 0.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Ambient temperature [°C] | -25...80 |
| Mounting | flush mountable |
| Protection class | III |
| Overload protection | yes |
| Dimensions [mm] | 28 x 10 x 16 |
| Hysteresis [% of Sr] | 1...15 |
| UL approval | Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191 |
| Switching frequency DC [Hz] | 800 |
| Switch point drift [% of Sr] | -10...10 |
| Display | switching status 1 x LED, yellow |
| Short-circuit protection | yes |
| Output function | normally open |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Reverse polarity protection | yes |
| Sensing range [mm] | 2 |
| Connection | Cable: 2 m, PVC; 3 x 0.14 mm² |
| MTTF [years] | 2,791 |
| Electrical design | NPN |
| Max. voltage drop switching output DC [V] | 2.5 |
| Housing | rectangular |
| Operating voltage [V] | 10...30 DC |
| Materials | PBT |
| Current consumption [mA] | 15 |
| Real sensing range Sr [mm] | 2± 10 % |
| Operating distance [mm] | 0...1.6 |
| Ambient temperature [°C] | -25...80 |
| Package Quantity | 1 |
