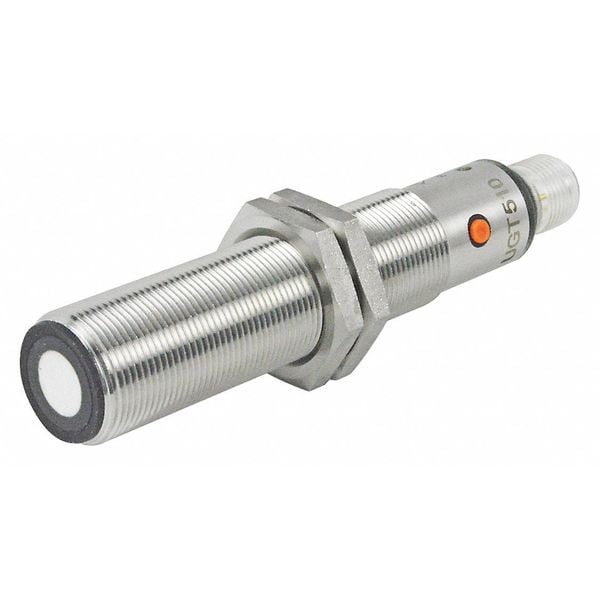

Sensor ultrasónico, M18, CC, 250-1600mm
| Operating voltage [V] | 10...30 DC; |
|---|---|
| Storage temperature [°C] | -30...80 |
| Sensing range [mm] | Target: 200 x 200 mm |
| Display | switching status 2 x LED, yellow echo 1 x LED, green |
| Electrical design | PNP |
| Total number of outputs | 1 |
| Items supplied | lock nuts: 2, stainless steel |
| SIO mode | yes |
| Teach function | yes |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Materials | stainless steel (1.4404 / 316L); PA; epoxy glass ceramics |
| Number of inputs and outputs | Number of digital outputs: 1 Number |
| Switch point drift [%] | -2...2 |
| Protection | IP 67 |
| SDCI standard | IEC 61131-9 |
| Required master port type | A |
| IO-Link functions (acyclical) | application specific tag; operating hours counter |
| Reverse polarity protection | yes |
| Overload protection | yes |
| Resolution [mm] | 1 |
| Protection class | III |
| IO-Link process data (cyclical) | function bit length process value 16 device status 4 binary switching information 2 |
| Output function | normally open / normally closed; |
| Repeatability | 0.01 |
| Communication interface | IO-Link |
| Number of digital outputs | 1 |
| Connection | Connector: 1 x M12; coding: A |
| IO-Link revision | 1.1 |
| Permanent current rating of switching output DC [mA] | 100 |
| Parameter setting options | hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
| Dimensions [mm] | M18 x 1 / L = 97.5 |
| Hysteresis [%] | < 2 |
| Profiles | Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel |
| Short-circuit protection | yes |
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A |
| Min. process cycle time [ms] | 3.2 |
| Temperature compensation | yes |
| Transmission type | COM2 |
| Switching frequency DC [Hz] | 2 |
| MTTF [years] | 163 |
| Vibration resistance | EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Current consumption [mA] | 55 |
| Thread designation | M18 x 1 |
| UL approval | Ta -20...70°C power supply Class 2 File number UL E174191 |
| Tightening torque [Nm] | 50 |
| Angle of aperture cylindrical [°] | 15 |
| Housing | threaded type |
| Ambient temperature [°C] | -20...70 |
| Max. voltage drop switching output DC [V] | 2.2 |
| Converter frequency [kHz] | 230 |
| Power-on delay time [s] | < 0.3 |
| Monitoring range final value [mm] | 1,600 |
| Package Quantity | 1 |
