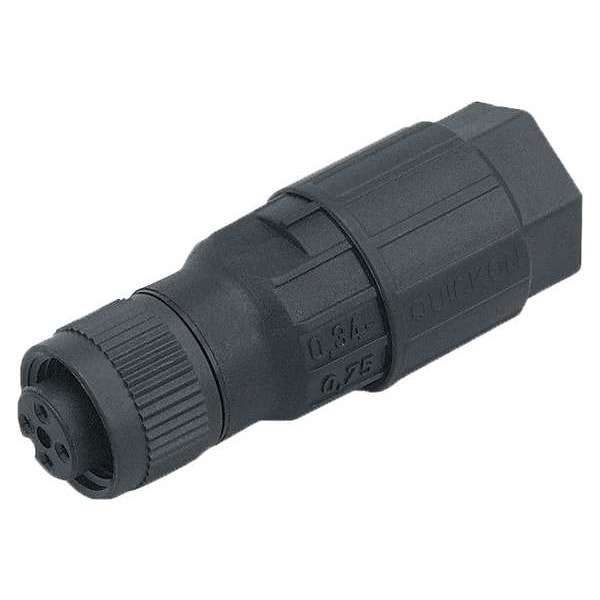

Wireable M12 connector
| Number of Contacts | 4 Socket |
|---|---|
| Item | M12 Circular Connector |
| Mounting Style | Female Thread |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Conductor Cross Section Size | 0.75 sq mm |
| Voltage Rating | 45 V AC, 70 V DC |
| Maximum Operating Temperature | 140 deg F |
| Housing Material | Nylon |
| Connector Body Type | Socket |
| Thread Size | M12 |
| Cable Outside Diameter | 7.5 mm |
| Minimum Operating Temperature | -13 deg F |
| Coding | A |
| IP Rating | IP67 |
| Includes Nut | Yes |
| Connection Type | Electrical Connections |
| Nominal Current | 4 A |
| Number of Poles | 4 |
| Connector Orientation | Straight |
| Package Quantity | 1 |
