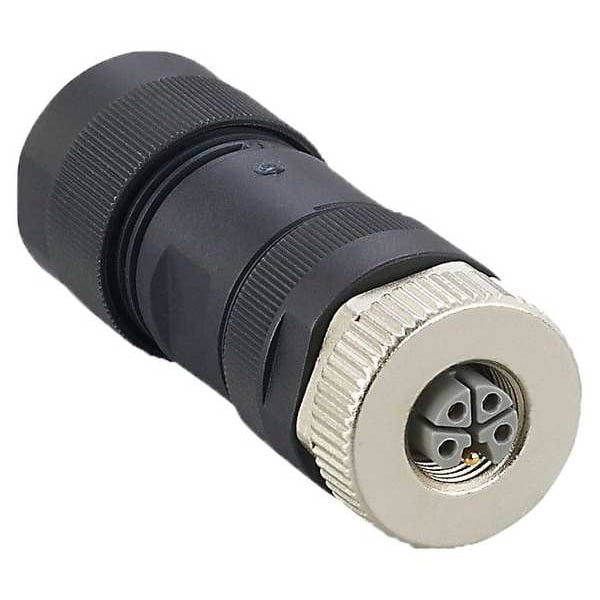

Wireable M12 connector
| Number of Contacts | 5 Socket |
|---|---|
| Mounting Style | Female Thread |
| Item | M12 Circular Connector |
| Application | Profinet DC Power |
| Nominal Current | 16 A |
| Maximum Operating Temperature | 185 deg F |
| Connector Orientation | Straight |
| Coding | L |
| Number of Poles | 5 |
| Includes Nut | Yes |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 deg F |
| Locking Style | Screw Connection |
| IP Rating | IP67 |
| Conductor Cross Section Size | 2.5 sq mm |
| Thread Size | M12 |
| Connector Body Type | Socket |
| Cable Outside Diameter | 13 mm |
| Voltage Rating | 63 V DC |
| Protection | IP 67 |
| Ambient temperature [°C] | -40...85 |
| Design | L-coded |
| Connection | Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
| Moulded-body material | PA |
| Electrical connection | screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm |
| Operating voltage [V] | < 63 DC |
| Dimensions [mm] | Ø 25 / L = 70 |
| Material nut | diecast zinc, nickel-plated |
| Max. current load total [A] | 16 |
| Special feature | Gold-plated contacts |
| Materials | PA |
| Ambient temperature [°C] | -40...85 |
| Package Quantity | 1 |
