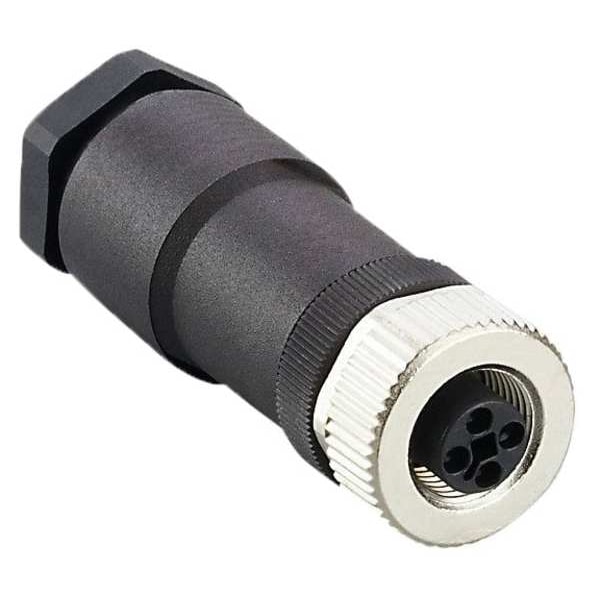

Wireable M12 connector
| Number of Contacts | 8 Socket |
|---|---|
| Mounting Style | Female Thread |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Item | M12 Circular Connector |
| Nominal Current | 4 A |
| Locking Style | Screw Connection |
| Connection Type | Gold-Plated Contacts |
| Maximum Operating Temperature | 212 deg F |
| Conductor Cross Section Size | 0.75 sq mm |
| Thread Size | M12 |
| Voltage Rating | 125 V AC, 125 V DC |
| Housing Material | Nylon |
| Minimum Operating Temperature | -13 deg F |
| Cable Outside Diameter | 8 mm |
| Number of Poles | 8 |
| Includes Nut | Yes |
| Connector Orientation | Straight |
| IP Rating | IP68 |
| Coding | A |
| Connector Body Type | Socket |
| Package Quantity | 1 |
