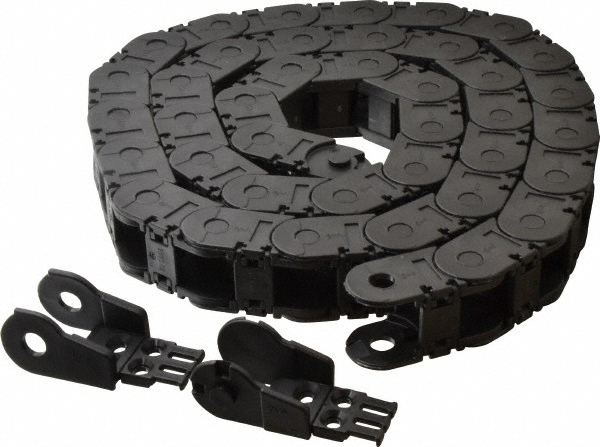

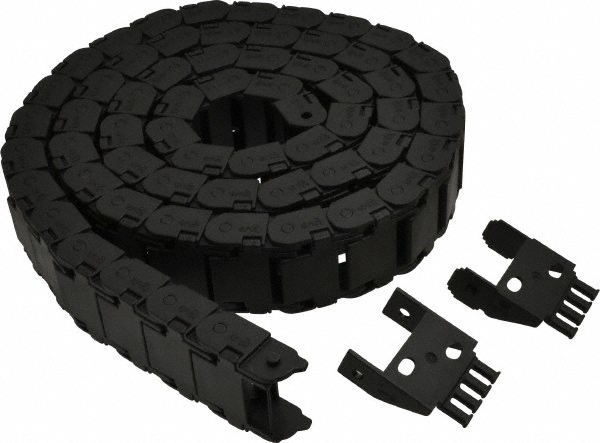

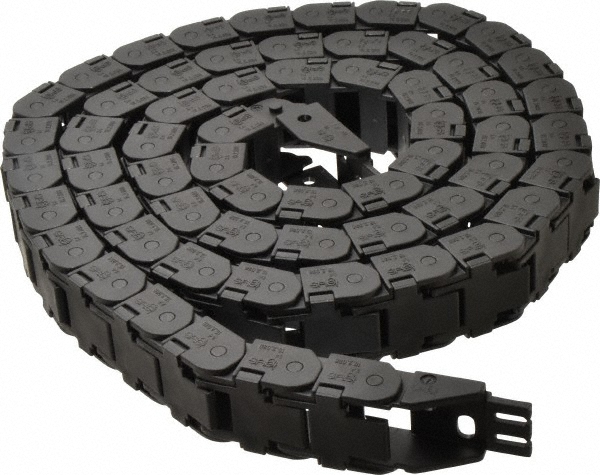

2.24 Inch Inside Width x 0.98 Inch Inside Height, 2.87 Inch Outside Width x 1.38 Inch Outside Height, 4.92 Inch Bend Radius
| Access Type | Fixed Open |
|---|---|
| Overall Length (Feet) | 6 ft |
| Inside Height (Decimal Inch) | 0.9800 |
| Inside Height (mm) | 0.9800 in; 25 mm |
| Inside Width | 2.2400 in; 57 mm |
| Inside Width (Decimal Inch) | 2.2400 |
| Outside Height | 35.0 mm; 1.3800 in |
| Outside Width | 73 mm; 2.8700 in |
| Bend Radius | 125 mm; 4.9200 in |
| Outside Height (Decimal Inch) | 1.3800 |
| Link To Link Pitch | 1.8100 in; 46 mm |
| Outside Width (mm) | 73 |
| Bend Radius (mm) | 125 |
| Number of Sections | 22 |
| Link to Link Pitch (Decimal Inch) | 1.8100 |
| Standards Met | VDE 0304 IIC UL 94 1H |
| UNSPSC Code | 26121630 |
| Country of Origin | Germany |
| MSC Number | MSC# 04234670 |
