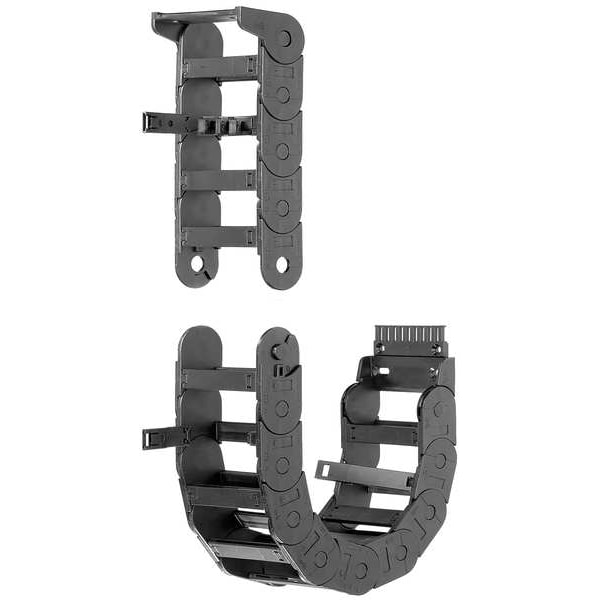

Cable Carrier, Med, Open, OW3.58In / 91mm
| Item | Cable and Hose Carrier |
|---|---|
| Style | Open |
| Number of Channels | 1 |
| Frame Stay | Cross Bar |
| Outside Width | 3.6 in |
| Series | 27 |
| Cavity Width | 2.95 in |
| Cavity Height | 1.38 in |
| Link to Link Pitch | 2.2 in |
| Loop Length | 25.59 in |
| Loop Height | 13.78 in |
| Height | 2 in |
| Bend Radius | 5.91 in |
| Includes | No Bracket Included |
| Package Quantity | 1 |
| Length | 48 in |
| Type | Medium |
| Number of Links | 22 |
| Color | Black |
| Crossbar Material | Igumid TE |
| Length (Straight Wireway) | 4 ft |
| Accessory Width | 3.6 in |
| Mounting Brackets Included | No |
| Mounting Bracket Design | Pivoting |
| Crossbar Opening Design | Opens Outside |
| Carrier Links Material | Igumid G |
| Min. Operating Temperature | -40 deg F |
| Max. Cable Dia. | 1.26 in |
| Features | Modular Interior Separation |
| Mounting Bracket Type | Fixed End, Moving End |
| Max. Operating Temperature | 248 deg F |
| Standards | VDE 0304 IIC UL94 HB |
| Crossbar Style | Hinged Snap-On |
| Carrier Design | Open |
