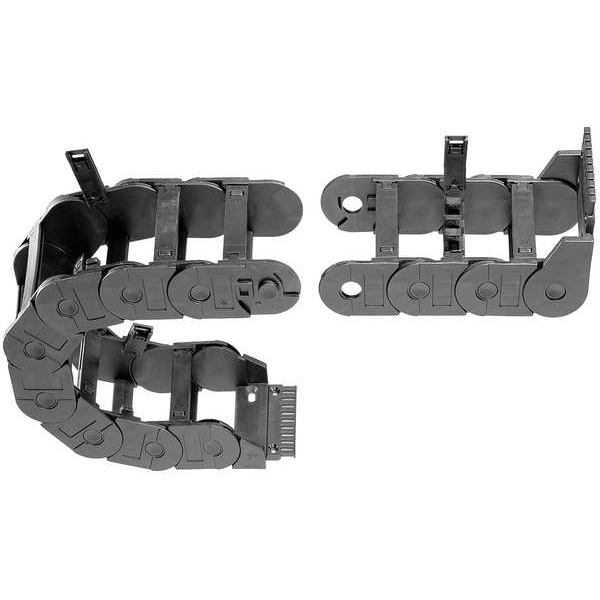

Cable Carrier, Med, Open, OW5.31In / 135mm
| Item | Cable and Hose Carrier |
|---|---|
| Style | Open |
| Number of Channels | 1 |
| Frame Stay | Cross Bar |
| Outside Width | 5.3 in |
| Series | 350 |
| Cavity Width | 4.53 in |
| Cavity Height | 1.77 in |
| Link to Link Pitch | 2.6 in |
| Loop Length | 34.45 in |
| Loop Height | 18.27 in |
| Height | 2-1/2 in |
| Bend Radius | 7.87 in |
| Type | Medium |
| Number of Links | 5 |
| Package Quantity | 1 |
| Includes | No Bracket Included |
| Length | 12 in |
| Crossbar Material | Igumid TE |
| Color | Black |
| Length (Straight Wireway) | 1 ft |
| Max. Cable Dia. | 1.65 in |
| Crossbar Opening Design | Opens Outside |
| Carrier Links Material | Igumid G |
| Standards | VDE 0304 IIC UL94 HB |
| Max. Operating Temperature | 248 deg F |
| Mounting Brackets Included | No |
| Accessory Width | 5.3 in |
| Min. Operating Temperature | -40 deg F |
| Mounting Bracket Design | Pivoting |
| Features | Dirt-Repellent |
| Carrier Design | Open |
| Crossbar Style | Hinged Snap-On |
| Mounting Bracket Type | Fixed End, Moving End |
