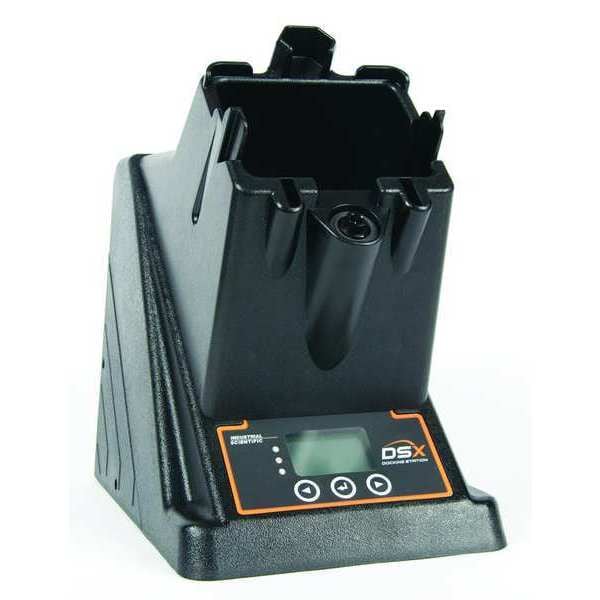

Docking Station, CH4, CO, O2, H2S, HCN Gas
| Item | Docking Station |
|---|---|
| For Use With | SafeCore Gas Detectors |
| Length | 10-3/4 in |
| Cylinder Size | 34 L, 58 L, 103 L |
| Height | 9-31/32 in |
| Gas Type | CO, O2, H2S, CH4, HCN |
| Material | Plastic |
| Temp. Range | 0 to 50 deg C |
| Industry Type | Healthcare |
| Width | 6-21/32 in |
| Shut Off | Automatic |
| Flow Rate | 0.5 lpm |
| Includes | Charger |
| Status Indicator | Display |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Voltage | 100V AC |
| Power Source | DC Adapter |
| Cylinder Capacity | 34 L/58 L/103 L |
| Standards | UL / CE |
| Communication Protocol | Ethernet |
| For Cylinder Volume | 34 L, 58 L, 103 L |
| Flow Rate - Maximum | 550 mL/min |
| Operating Temperature - Maximum | 122 deg F |
| Compatible Detector Model/Series | SafeCore |
| Operating Frequency | 50 to 60 Hz |
| Test Stand Height | 10-3/4 in |
| Digital Memory Capacity | 8 GB |
| Test Stand Width | 6.65 in |
| Chemical Formula | CH4, CO, H2S, HCN, O2 |
| Data Logger | Yes |
| Test Stand Material | Plastic |
| Display Type | Digital |
| For Gas Type | Carbon Monoxide, Dioxygen, Hydrogen Cyanide, Hydrogen Sulfide, Methane |
| Alert Type | Digital Display |
| Operating Temperature - Minimum | 32 deg F |
| Display Screen Type | LCD Dot Matrix |
| Series | Radius BZ1 |
| Compatible Systems and Services | Cloud Connectivity |
| Test Stand Depth | 10-3/4 in |
| Visual Alert Type | LCD |
| Manufacturer Warranty Length | 2 yr |
| Mount Type | Freestanding |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
