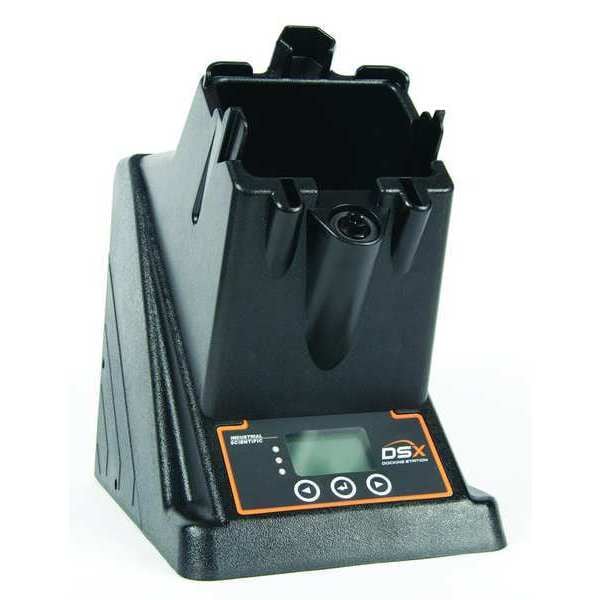

Docking Station, CH4, CO, O2, H2S, HCN Gas
| Item | Docking Station |
|---|---|
| For Use With | SafeCore Gas Detectors |
| Length | 10-3/4 in |
| Gas Type | CO, O2, H2S, CH4, HCN |
| Height | 9-31/32 in |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Cylinder Size | 34 L, 58 L, 103 L |
| Material | Plastic |
| Industry Type | Healthcare |
| Status Indicator | Display |
| Includes | Charger |
| Temp. Range | 0 to 50 deg C |
| Width | 6-21/32 in |
| Flow Rate | 0.5 lpm |
| Shut Off | Automatic |
| Voltage | 100V AC |
| Standards | UL / CE |
| Cylinder Capacity | 34 L/58 L/103 L |
| Power Source | DC Adapter |
| Manufacturer Warranty Length | 2 yr |
| Test Stand Height | 10-3/4 in |
| Operating Temperature - Maximum | 122 deg F |
| Test Stand Width | 6.65 in |
| Flow Rate - Maximum | 550 mL/min |
| Alert Type | Digital Display |
| For Gas Type | Carbon Monoxide, Dioxygen, Hydrogen Cyanide, Hydrogen Sulfide, Methane |
| Communication Protocol | Ethernet |
| Display Type | Digital |
| Compatible Detector Model/Series | SafeCore |
| Chemical Formula | CH4, CO, H2S, HCN, O2 |
| Mount Type | Freestanding |
| Operating Frequency | 50 to 60 Hz |
| Data Logger | Yes |
| Operating Temperature - Minimum | 32 deg F |
| Visual Alert Type | LCD |
| Display Screen Type | LCD Dot Matrix |
| Compatible Systems and Services | Cloud Connectivity |
| Test Stand Material | Plastic |
| Series | Radius BZ1 |
| For Cylinder Volume | 34 L, 58 L, 103 L |
| Digital Memory Capacity | 8 GB |
| Test Stand Depth | 10-3/4 in |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
