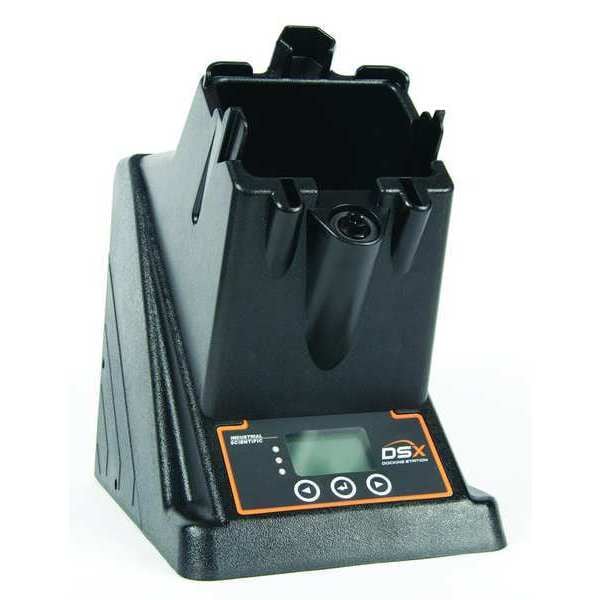

Docking Station, CH4, CO, O2, H2S, HCN Gas
| Item | Docking Station |
|---|---|
| For Use With | SafeCore Gas Detectors |
| Length | 10-3/4 in |
| Temp. Range | 0 to 50 deg C |
| Status Indicator | Display |
| Flow Rate | 0.5 lpm |
| Width | 6-21/32 in |
| Material | Plastic |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Includes | Charger |
| Gas Type | CO, O2, H2S, CH4, HCN |
| Shut Off | Automatic |
| Industry Type | Healthcare |
| Cylinder Size | 34 L, 58 L, 103 L |
| Voltage | 100V AC |
| Height | 9-31/32 in |
| Cylinder Capacity | 34 L/58 L/103 L |
| Power Source | DC Adapter |
| Standards | UL / CE |
| Chemical Formula | CH4, CO, H2S, HCN, O2 |
| Test Stand Height | 10-3/4 in |
| Display Type | Digital |
| Digital Memory Capacity | Cloud Connectivity |
| For Gas Type | Carbon Monoxide, Dioxygen, Hydrogen Cyanide, Hydrogen Sulfide, Methane |
| Test Stand Width | 6.65 in |
| Manufacturer Warranty Length | 2 yr |
| Communication Protocol | Ethernet |
| Data Logger | Yes |
| Test Stand Depth | 10-3/4 in |
| Alert Type | Digital Display |
| Test Stand Material | Plastic |
| Series | Radius BZ1 |
| For Cylinder Volume | 34 L, 58 L, 103 L |
| Visual Alert Type | LCD |
| Compatible Detector Model/Series | SafeCore |
| Compatible Systems and Services | Cloud Connectivity |
| Mount Type | Freestanding |
| Operating Temperature - Minimum | 32 deg F |
| Operating Frequency | 50 to 60 Hz |
| Display Screen Type | LCD Dot Matrix |
| Operating Temperature - Maximum | 122 deg F |
| Flow Rate - Maximum | 550 mL/min |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
