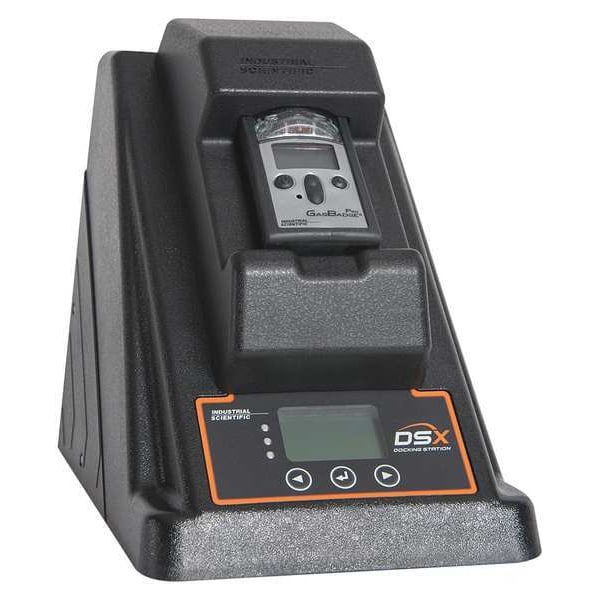

Docking Station, GasBadge Pro, (3) Port
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 8-59/64 in |
| Width | 6-21/32 in |
| Charger | Included |
| Cylinder Holder | No |
| Length | 10-3/4 in |
| Test Time | 90 sec (Calibration) |
| Power Source | Adapter |
| Regulator | No |
| Status Indicator | LCD Display |
| Includes | iGas Reader, Power Supply |
| Removable Memory Card | No |
| Wired Ethernet | Included |
| For Use With | GasBadge Pro |
| Alarm Type | Digital Display |
| Display | LCD Dot Matrix |
| Depth | 10-3/4 in |
| Manufacturer Warranty Length | 2 yr |
| Data Logger | Yes |
| Communication Protocol | Ethernet |
| Test Stand Depth | 10-3/4 in |
| Operating Temperature - Minimum | 32 deg F |
| Test Stand Width | 6.65 in |
| Mount Type | Freestanding |
| Operating Frequency | 50 to 60 Hz |
| Compatible Detector Model/Series | GasBadge Pro |
| Includes Charger | Yes |
| Test Stand Height | 8.92 in |
| Digital Memory Capacity | Cloud Connectivity |
| Series | GasBadge |
| Compatible Systems and Services | Cloud Connectivity |
| Flow Rate - Maximum | 550 mL/min |
| Includes Regulator | No |
| Operating Temperature - Maximum | 122 deg F |
| Visual Alert Type | LCD |
| Includes Cylinder Holder | No |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
