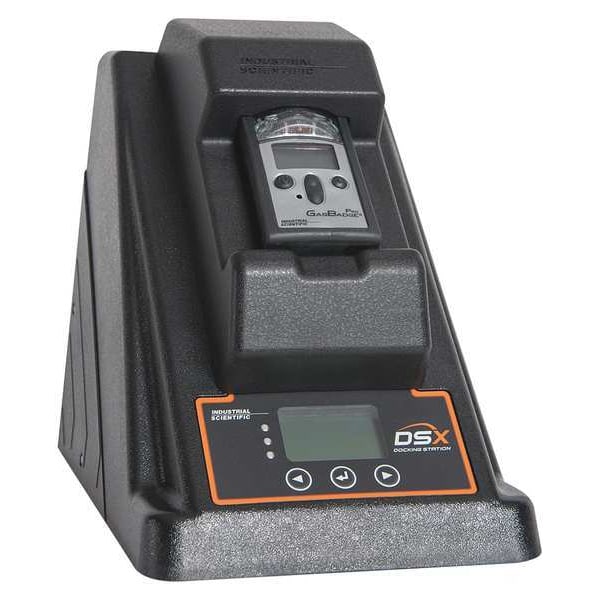

Docking Station, GasBadge Pro, (3)Port
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 8-59/64 in |
| Width | 6-21/32 in |
| Cylinder Holder | No |
| Wired Ethernet | Included |
| Power Source | Adapter |
| Includes | iGas Reader, Power Supply |
| For Use With | GasBadge Pro |
| Test Time | 90 sec (Calibration) |
| Removable Memory Card | No |
| Length | 10-3/4 in |
| Charger | Included |
| Status Indicator | LCD Display |
| Regulator | No |
| Depth | 10-3/4 in |
| Display | LCD Dot Matrix |
| Alarm Type | Digital Display |
| Test Stand Width | 6.65 in |
| Test Stand Depth | 10-3/4 in |
| Includes Regulator | No |
| Operating Temperature - Minimum | 32 deg F |
| Communication Protocol | Ethernet |
| Operating Frequency | 50 to 60 Hz |
| Operating Temperature - Maximum | 122 deg F |
| Test Stand Height | 8.92 in |
| Compatible Systems and Services | Cloud Connectivity |
| Data Logger | Yes |
| Compatible Detector Model/Series | GasBadge Pro |
| Mount Type | Freestanding |
| Series | GasBadge |
| Includes Charger | Yes |
| Manufacturer Warranty Length | 2 yr |
| Visual Alert Type | LCD |
| Digital Memory Capacity | Cloud Connectivity |
| Flow Rate - Maximum | 550 mL/min |
| Includes Cylinder Holder | No |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
