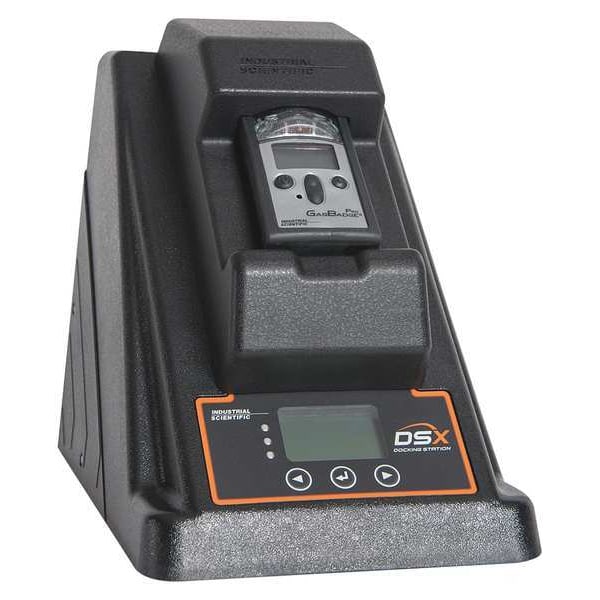

Docking Station, GasBadge Pro, (3)Port/USB
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 8-59/64 in |
| Width | 6-21/32 in |
| Wired Ethernet | Included |
| Status Indicator | LCD Display |
| Cylinder Holder | No |
| Power Source | Adapter |
| Removable Memory Card | Included |
| Length | 10-3/4 in |
| Regulator | No |
| For Use With | GasBadge Pro |
| Charger | Included |
| Test Time | 90 sec (Calibration) |
| Includes | (2) iGas Readers, 1 GB USB Drive, Power Supply |
| Depth | 10-3/4 in |
| Alarm Type | Digital Display |
| Display | Digital |
| Communication Protocol | Ethernet |
| Series | GasBadge |
| Compatible Systems and Services | Cloud Connectivity |
| Operating Temperature - Maximum | 122 deg F |
| Test Stand Width | 6.65 in |
| Includes Regulator | No |
| Manufacturer Warranty Length | 2 yr |
| Flow Rate - Maximum | 550 mL/min |
| Visual Alert Type | LCD |
| Includes Cylinder Holder | No |
| Operating Temperature - Minimum | 32 deg F |
| Data Logger | Yes |
| Operating Frequency | 50 to 60 Hz |
| Mount Type | Freestanding |
| Test Stand Depth | 10-3/4 in |
| Compatible Detector Model/Series | GasBadge Pro |
| Test Stand Height | 8.92 in |
| Includes Charger | Yes |
| Digital Memory Capacity | 8 GB |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
