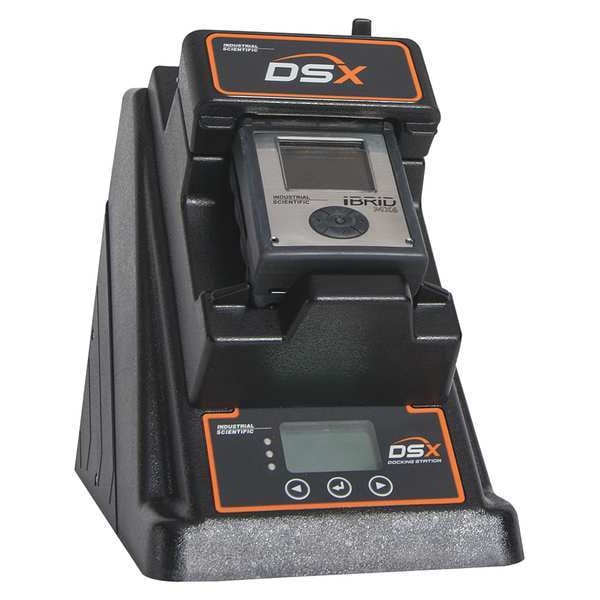

Docking Station, iBrid MX6, (3) Port/USB
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 9-31/32 in |
| Width | 6-21/32 in |
| Regulator | No |
| Status Indicator | LCD Display |
| Test Time | 90 sec (Calibration) |
| Removable Memory Card | Included |
| Cylinder Holder | No |
| Power Source | Adapter |
| Charger | Included |
| Wired Ethernet | Included |
| Includes | (2) iGas Readers, 1 GB USB Drive, Power Supply |
| Length | 10-3/4 in |
| For Use With | iBrid MX6 |
| Alarm Type | Digital Display |
| Display | LCD Dot Matrix |
| Depth | 10-3/4 in |
| Communication Protocol | Ethernet |
| Test Stand Width | 6.65 in |
| Visual Alert Type | LCD |
| Mount Type | Freestanding |
| Test Stand Height | 9.96 in |
| Test Stand Depth | 10-3/4 in |
| Includes Charger | Yes |
| Includes Cylinder Holder | No |
| Series | MX6 iBrid |
| Operating Temperature - Minimum | 32 deg F |
| Compatible Detector Model/Series | MX6 iBrid |
| Operating Frequency | 50 to 60 Hz |
| Includes Regulator | No |
| Manufacturer Warranty Length | 2 yr |
| Flow Rate - Maximum | 550 mL/min |
| Digital Memory Capacity | 8 GB |
| Compatible Systems and Services | Cloud Connectivity |
| Operating Temperature - Maximum | 122 deg F |
| Data Logger | Yes |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
