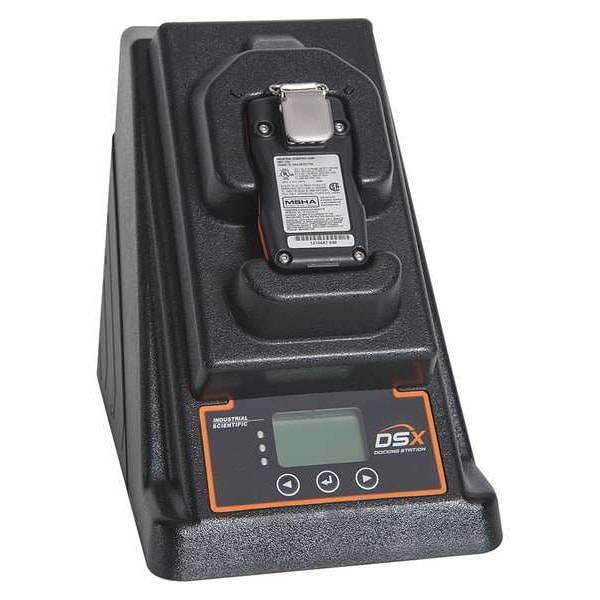

Docking Station, Tango TX1, (3) Port
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 8-59/64 in |
| Width | 6-21/32 in |
| Removable Memory Card | No |
| Status Indicator | LCD Display |
| Power Source | Adapter |
| For Use With | Tango TX1 |
| Wired Ethernet | Included |
| Length | 10-3/4 in |
| Regulator | No |
| Includes | iGas Reader, Power Supply |
| Charger | Included |
| Test Time | 90 sec (Calibration) |
| Cylinder Holder | No |
| Depth | 10-3/4 in |
| Alarm Type | Digital Display |
| Display | LCD Dot Matrix |
| Test Stand Height | 8.92 in |
| Operating Frequency | 50 to 60 Hz |
| Includes Regulator | No |
| Includes Charger | Yes |
| Test Stand Width | 6.65 in |
| Series | Tango TX1 |
| Mount Type | Freestanding |
| Data Logger | Yes |
| Flow Rate - Maximum | 550 mL/min |
| Compatible Detector Model/Series | Tango TX1 |
| Includes Cylinder Holder | No |
| Operating Temperature - Minimum | 32 deg F |
| Compatible Systems and Services | Cloud Connectivity |
| Test Stand Depth | 10-3/4 in |
| Manufacturer Warranty Length | 2 yr |
| Operating Temperature - Maximum | 122 deg F |
| Visual Alert Type | LCD |
| Communication Protocol | Ethernet |
| Digital Memory Capacity | Cloud Connectivity |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
