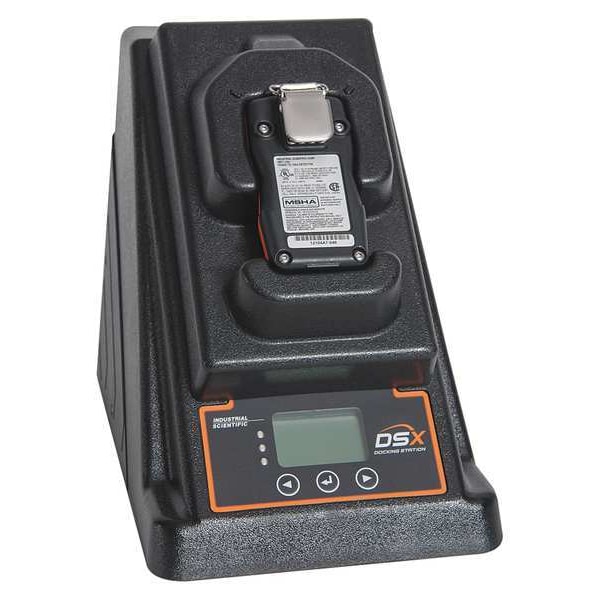

Docking Station, Tango TX1, (3) Port, USB
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 8-59/64 in |
| Width | 6-21/32 in |
| Length | 10-3/4 in |
| Removable Memory Card | Included |
| Charger | Included |
| Cylinder Holder | No |
| Includes | (2) iGas Readers, 1 GB USB Drive, Power Supply |
| For Use With | Tango TX1 |
| Regulator | No |
| Wired Ethernet | Included |
| Power Source | Adapter |
| Test Time | 90 sec (Calibration) |
| Status Indicator | LCD Display |
| Alarm Type | Digital Display |
| Display | Digital |
| Depth | 10-3/4 in |
| Manufacturer Warranty Length | 2 yr |
| Series | Tango TX1 |
| Includes Regulator | No |
| Test Stand Height | 8.92 in |
| Digital Memory Capacity | 8 GB |
| Mount Type | Freestanding |
| Operating Temperature - Minimum | 32 deg F |
| Includes Cylinder Holder | No |
| Includes Charger | Yes |
| Communication Protocol | Ethernet |
| Visual Alert Type | LCD |
| Operating Temperature - Maximum | 122 deg F |
| Test Stand Width | 6.65 in |
| Compatible Systems and Services | Cloud Connectivity |
| Compatible Detector Model/Series | Tango TX1 |
| Data Logger | Yes |
| Test Stand Depth | 10-3/4 in |
| Flow Rate - Maximum | 550 mL/min |
| Operating Frequency | 50 to 60 Hz |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
