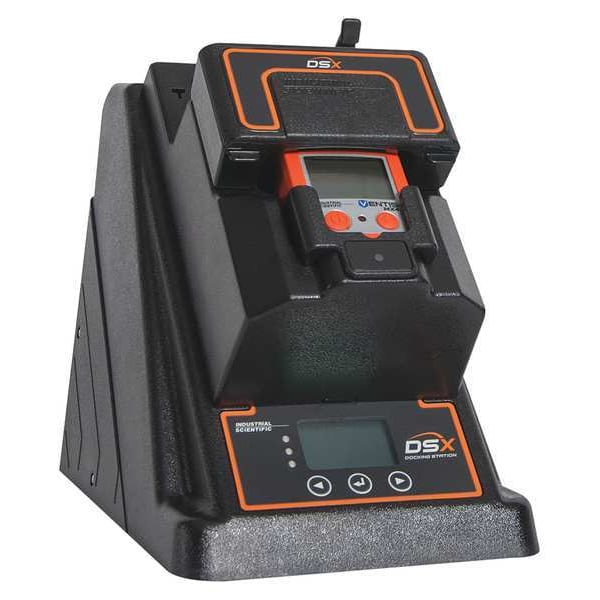

Docking Station, Ventis MX4, (3) Port
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 9-27/32 in |
| Width | 6-21/32 in |
| For Use With | Ventis MX4 |
| Includes | (2) iGas Readers, Power Supply |
| Power Source | Adapter |
| Test Time | 90 sec (Calibration) |
| Cylinder Holder | No |
| Status Indicator | LCD Display |
| Regulator | No |
| Length | 10-3/4 in |
| Wired Ethernet | Included |
| Charger | Included |
| Removable Memory Card | No |
| Depth | 10-3/4 in |
| Alarm Type | Digital Display |
| Display | LCD Dot Matrix |
| Includes Charger | Yes |
| Series | Ventis MX4, Ventis Pro5 |
| Digital Memory Capacity | Cloud Connectivity |
| Test Stand Height | 9.83 in |
| Data Logger | Yes |
| Operating Temperature - Maximum | 122 deg F |
| Visual Alert Type | LCD |
| Communication Protocol | Ethernet |
| Manufacturer Warranty Length | 2 yr |
| Test Stand Width | 6.65 in |
| Includes Regulator | No |
| Operating Temperature - Minimum | 32 deg F |
| Includes Cylinder Holder | No |
| Operating Frequency | 50 to 60 Hz |
| Mount Type | Freestanding |
| Compatible Systems and Services | Cloud Connectivity |
| Test Stand Depth | 10-3/4 in |
| Flow Rate - Maximum | 550 mL/min |
| Compatible Detector Model/Series | Ventis, Ventis MX4 Pro5 |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
