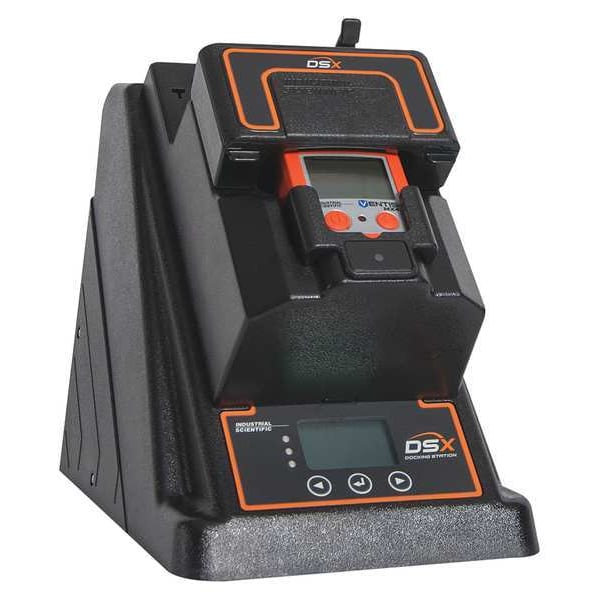

Docking Station, Ventis MX4, (3) Port/USB
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 9-27/32 in |
| Width | 6-21/32 in |
| For Use With | Ventis MX4 |
| Length | 10-3/4 in |
| Cylinder Holder | No |
| Charger | Included |
| Includes | (2) iGas Readers, 1 GB USB Drive, Power Supply |
| Removable Memory Card | Included |
| Power Source | Adapter |
| Regulator | No |
| Wired Ethernet | Included |
| Test Time | 90 sec (Calibration) |
| Status Indicator | LCD Display |
| Depth | 10-3/4 in |
| Display | Digital |
| Alarm Type | Digital Display |
| Operating Temperature - Minimum | 32 deg F |
| Digital Memory Capacity | 8 GB |
| Test Stand Depth | 10-3/4 in |
| Visual Alert Type | LCD |
| Compatible Systems and Services | Cloud Connectivity |
| Series | Ventis MX4, Ventis Pro5 |
| Manufacturer Warranty Length | 2 yr |
| Communication Protocol | Ethernet |
| Mount Type | Freestanding |
| Operating Temperature - Maximum | 122 deg F |
| Test Stand Width | 6.65 in |
| Data Logger | Yes |
| Compatible Detector Model/Series | Ventis, Ventis MX4 Pro5 |
| Includes Regulator | No |
| Flow Rate - Maximum | 550 mL/min |
| Operating Frequency | 50 to 60 Hz |
| Includes Cylinder Holder | No |
| Includes Charger | Yes |
| Test Stand Height | 9.83 in |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
