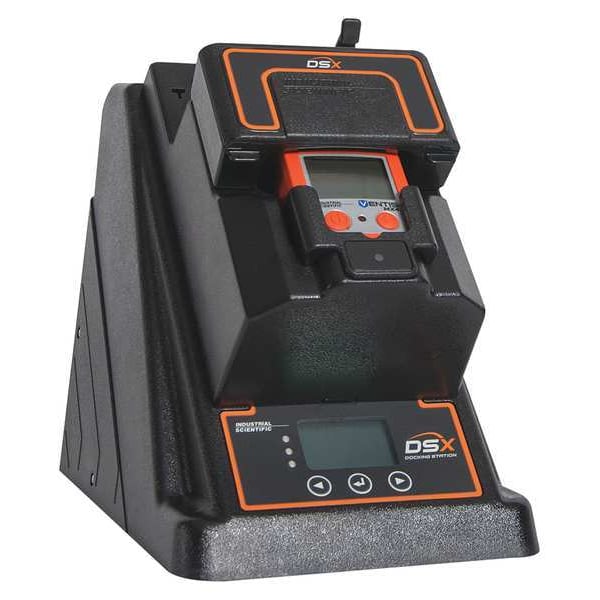

Docking Station, Ventis MX4, (6) Port
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 9-27/32 in |
| Width | 6-21/32 in |
| Cylinder Holder | No |
| Test Time | 90 sec (Calibration) |
| Power Source | Adapter |
| Length | 10-3/4 in |
| For Use With | Ventis MX4 |
| Regulator | No |
| Charger | Included |
| Wired Ethernet | Included |
| Status Indicator | LCD Display |
| Removable Memory Card | No |
| Includes | (5) iGas Readers, Power Supply |
| Alarm Type | Digital Display |
| Display | LCD Dot Matrix |
| Depth | 10-3/4 in |
| Test Stand Width | 6.65 in |
| Includes Charger | Yes |
| Manufacturer Warranty Length | 2 yr |
| Series | MX6 iBrid |
| Data Logger | Yes |
| Flow Rate - Maximum | 550 mL/min |
| Test Stand Height | 9.96 in |
| Digital Memory Capacity | Cloud Connectivity |
| Operating Frequency | 50 to 60 Hz |
| Operating Temperature - Minimum | 32 deg F |
| Visual Alert Type | LCD |
| Operating Temperature - Maximum | 122 deg F |
| Mount Type | Freestanding |
| Includes Cylinder Holder | No |
| Includes Regulator | No |
| Communication Protocol | Ethernet |
| Compatible Detector Model/Series | MX6 iBrid |
| Compatible Systems and Services | Cloud Connectivity |
| Test Stand Depth | 10-3/4 in |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
