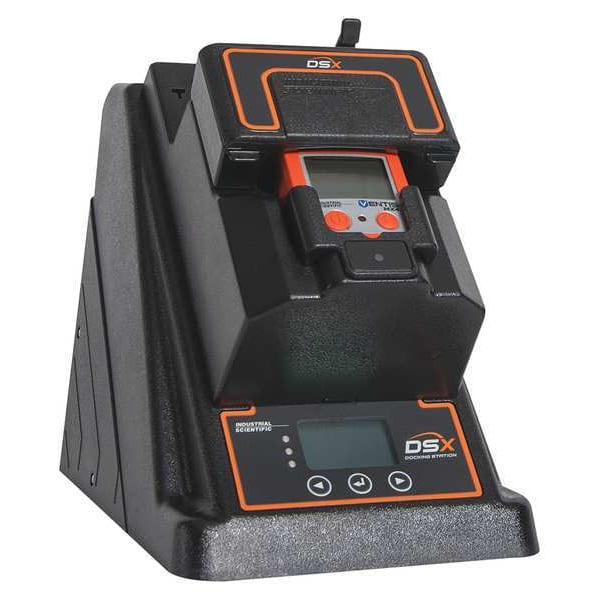

Docking Station, Ventis MX4, (6) Port/USB
| Item | Docking Station |
|---|---|
| Operating Temp. Range | 32 Degrees to 122 Degrees F |
| Standards | UL / CE |
| Features | Auto Detect Calibration Gas Type and Expiration Date Upon Cylinder Connection, DSX Standalone Requires No PC or Network Connection, DSX-L Local Server Provides Server-Based Record Storage, Fleet Management and Automated Maintenance and Custom Data Reporting, DSXi Cloud-Connected Provides Cloud-Based Record Storage with Automatic File Back-Up, Fleet Management and Automated Maintenance and Notifications Through iNet Control, Email Alerts and Notifications Provide Information on Worker Exposure, Instrument Usage and Instrument Service Needs, Print Bump Test and Calibration Certificates for Hot Work and Confined Space Entry |
| Height | 9-27/32 in |
| Width | 6-21/32 in |
| Status Indicator | LCD Display |
| Charger | Included |
| Cylinder Holder | No |
| Length | 10-3/4 in |
| Includes | (5) iGas Readers, 1 GB USB Drive, Power Supply |
| Wired Ethernet | Included |
| For Use With | Ventis MX4 |
| Power Source | Adapter |
| Removable Memory Card | Included |
| Regulator | No |
| Test Time | 90 sec (Calibration) |
| Depth | 10-3/4 in |
| Display | Digital |
| Alarm Type | Digital Display |
| Includes Cylinder Holder | No |
| Flow Rate - Maximum | 550 mL/min |
| Communication Protocol | Ethernet |
| Compatible Detector Model/Series | Ventis, Ventis MX4 Pro5 |
| Digital Memory Capacity | 8 GB |
| Compatible Systems and Services | Cloud Connectivity |
| Data Logger | Yes |
| Mount Type | Freestanding |
| Test Stand Height | 9.83 in |
| Visual Alert Type | LCD |
| Test Stand Depth | 10-3/4 in |
| Manufacturer Warranty Length | 2 yr |
| Series | Ventis MX4, Ventis Pro5 |
| Test Stand Width | 6.65 in |
| Operating Temperature - Minimum | 32 deg F |
| Includes Charger | Yes |
| Operating Temperature - Maximum | 122 deg F |
| Includes Regulator | No |
| Operating Frequency | 50 to 60 Hz |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
